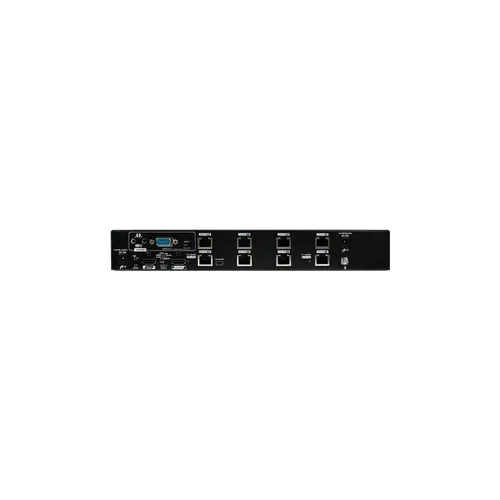

AHD TRANSMITTER 8 PORT
SenseLK
Rs 15,000
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
AHD Transmitter – 8-Port (Passive) — Detailed Specifications
| Specification Category | Details |
|---|---|
| Product Type | 8-Port AHD/TVI/CVI Video Balun Transmitter (Passive) |
| Number of Channels | 8 Channels (Supports 8 video inputs/outputs) |
| Supported Video Formats | AHD, TVI, CVI Analog HD Video |
| Supported Resolutions | 720p, 960p, 1080p, up to 4MP/5MP depending on model |
| Transmission Distance | Up to 300m for 720p/960p; Up to 200m for 1080p over CAT5/CAT6 cable |
| Connector Types | BNC Male (video input) to RJ45 Terminal (video output) per channel |
| Power Requirements | Passive operation – no external power needed |
| Impedance | BNC: 75 Ohms; RJ45: 100 Ohms |
| Frequency Response | DC to 60 MHz |
| Insertion Loss | Less than 2 dB across full frequency range |
| Common Mode Rejection | >60 dB at 60 Hz |
| Surge Protection | Built-in surge and transient voltage protection |
| Material | Durable ABS plastic housing |
| Mounting Options | Wall-mountable or desktop placement |
| Color | Black or dark grey |
| Dimensions (Approx.) | 200 × 100 × 25 mm (may vary by manufacturer) |
| Weight | Approx. 200–250 grams |
| Operating Temperature | -10°C to +55°C |
| Humidity Range | 0%–95% non-condensing |
| Certifications | CE, RoHS (subject to model) |
| Typical Applications | CCTV systems, DVR setups, long-distance HD video transmission for security surveillance |
Product Highlights
-
8-Channel Video Transmission
Simultaneously transmit eight high-definition analog video signals over a single CAT5 or CAT6 cable. -
Passive Design for Easy Installation
No external power source needed, simplifying deployment and maintenance. -
Supports Multiple HD Analog Formats
Compatible with AHD, TVI, and CVI technologies, ensuring broad system compatibility. -
Long-Range Transmission Capability
Capable of sending clear, stable video up to 300 meters for 720p signals, ideal for large installations. -
Built-In Surge and Interference Protection
Ensures reliable video quality even in electrically noisy environments. -
Standardized Connectors for Versatility
BNC to RJ45 connections provide straightforward cabling with existing network infrastructure. -
Robust and Compact Housing
Designed for durability and space-saving installation in security control rooms or equipment racks. -
Ideal for Complex CCTV Systems
Perfect for multi-camera setups requiring organized, high-quality video transmission over long distances.
