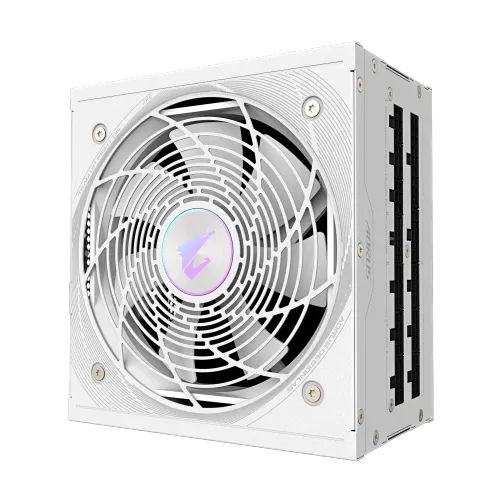

AORUS ELITE P1000W 80 Plus Platinum Modular Power Supply (White)

AORUS ELITE P1000W 80 Plus Platinum Modular Power Supply : Specification

• Model
• GP-AE1000PM PG5

• Type
• Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)

• PFC
• Active PFC (>0.9 typical)

• Input Voltage
• 100-240 Vac (full range)

• Input Current
• 15-6.5A

• Input Frequency
• 60-50 Hz

• Output Capacity
• 1000W

• Dimensions
• 150 x 140 x 86mm

• Fan Type
• 120mm Fluid Dynamic Bearing (FDB) Fan

• 80 PLUS
• Platinum

• Efficiency
• 92% at typical load

• MTBF
• >100,000 hours

• Protections
• OVP/OPP/SCP/UVP/OCP/OTP

• Power Good Signal
• 100-150ms

• Hold Up Time
• >16ms

• Cable Type
• Flat, All black

• Connectors
• ATX/MB 20+4 Pin x 1 : 650mm*1
  CPU/EPS 4+4 Pin x 2 : 700mm*2
  PCI-e 16 Pin x 1: 700mm*1
  PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
  SATA x 8 : 600mm+150mm+150mm+150mm*2
  4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
