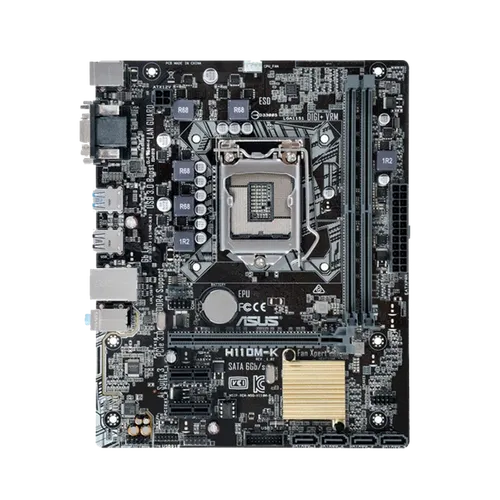

ASUS H110M-K DDR4 MOTHERBOARD (3y)
COMPUTER AND ACCESSORIES
SenseLK
Rs 27,000
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Category | Details |
|---|---|
| Model Name | ASUS H110M‑K DDR4 |
| Warranty | 3‑Year Limited Warranty |
| Form Factor | micro‑ATX (approx. 22.6 cm × 18.3 cm) |
| CPU Socket | Intel® LGA 1151 — supports 6th Gen Intel® Core™, Pentium® Gold, Celeron® processors |
| Chipset | Intel® H110 Chipset |
| Memory (RAM) Support | 2 × DDR4 DIMM slots, dual‑channel architecture, up to 32 GB total |
| Supported Memory Speeds | DDR4 2133 MHz (for 6th Gen CPUs) / DDR4 2400 MHz (for 7th Gen CPUs) – non‑ECC, un‑buffered memory |
| Graphics / Integrated Video Output | 1 × DVI‑D + 1 × D‑Sub (VGA) output (dependent on CPU with integrated graphics) |
| Maximum Shared Memory (iGPU) | Up to 1024 MB (shared) |
| Expansion Slots (PCIe) | 1 × PCIe 3.0/2.0 x16 (x16 mode) 2 × PCIe 2.0 x1 |
| Storage Interfaces | 4 × SATA 6 Gb/s ports (legacy serial‑ATA) |
| Networking (LAN) | 1 × Gigabit Ethernet port (Realtek® RTL8111H) |
| Audio | Realtek® ALC887 8‑Channel High‑Definition Audio; features include LED‑illuminated audio trace path, dedicated PCB audio layers, premium Japanese capacitors |
| USB & Rear I/O Ports | • 2 × USB 3.1 Gen 1 Type‑A (back panel) • 4 × USB 2.0 Type‑A (back panel) • PS/2 keyboard & PS/2 mouse ports • VGA + DVI‑D video outputs • LAN port • 3 audio jacks (back panel) |
| Front Panel/Internal Headers | • 1 × USB 3.1 Gen 1 header (supports two front USB ports) • 1 × USB 2.0 header (supports two front USB ports) • 1 × COM port header • 1 × TPM connector • 1 × 24‑pin ATX power connector • 1 × 4‑pin ATX 12V power connector • 1 × CPU fan header • 1 × chassis fan header • Clear CMOS jumper |
| Protection & Build Features | ASUS 5X Protection II (includes ASUS LANGuard, Over‑voltage protection, DIGI+ VRM, DRAM over‑current protection, stainless‑steel back I/O plating) |
| BIOS & Software Features | UEFI BIOS with EZ Mode and Advanced Mode, ASUS EZ Flash 3 support, CrashFree BIOS 3, Intel® Extreme Memory Profile (XMP) ready, AI Suite utilities |
| Operating System Support | Windows® 10 64‑bit, Windows® 8.1 64‑bit, Windows® 7 32/64‑bit (subject to driver availability) |
| Other Notes | Non‑ECC, un‑buffered memory only; integrated graphics functions depend on compatible CPU; memory speed support varies by CPU generation; micro‑ATX design suited for compact builds |
| Package Contents | Motherboard unit, I/O shield, two SATA cables, user manual, driver/media disc or download link |
