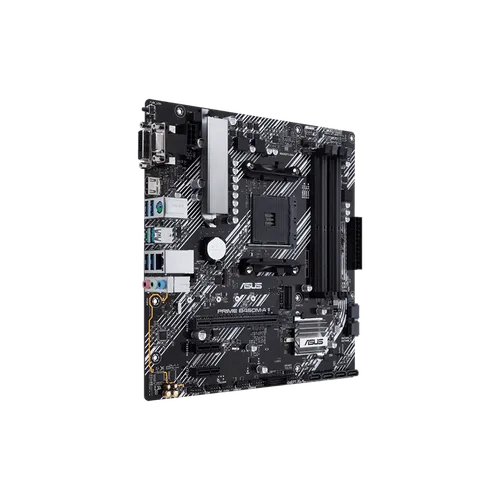

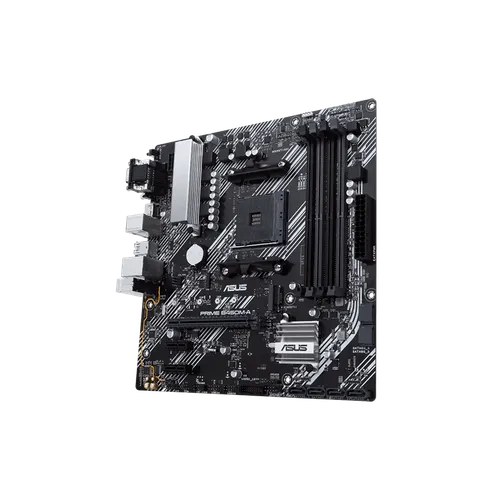

ASUS PRIME B450M-A II MOTHERBOARD(3y)- 90MB15Z0-M0UAY0
COMPUTER AND ACCESSORIES
SenseLK
Rs 38,300
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Spec Category | Specification |
|---|---|
| Model / Warranty | PRIME B450M‑A II, 3 years hardware warranty |
| CPU / Socket / Chipset | AMD AM4 socket; supports 1st / 2nd / 3rd Gen Ryzen, Ryzen with Vega, Athlon with Vega; AMD B450 chipset |
| Form Factor | Micro‑ATX (≈ 24.4 cm × 24.0 cm) |
| Memory / RAM Support | 4 × DDR4 DIMM slots, up to 128 GB total; supported frequencies (OC): 2133 / 2400 / 2666 / 2800 / 3000 / 3200 / 3300 / 3400 / 3466 / 3600 / 3733 / 3866 / 4000 / 4400 MHz (depending on CPU) |
| Integrated Graphics / Display Outputs | Supports integrated GPU (if CPU has iGPU) for 1 × HDMI 2.0b, 1 × DVI‑D, 1 × VGA (D‑Sub) |
| Expansion Slots | 1 × PCIe 3.0 x16 slot 2 × PCIe 2.0 x1 slots |
| Storage / M.2 / SATA | 1 × M.2 Socket 3 (supports SATA & PCIe 3.0 x4) 6 × SATA 6 Gb/s ports (some shared/bandwidth dependent) |
| RAID Support | RAID 0 / 1 / 10 for SATA drives |

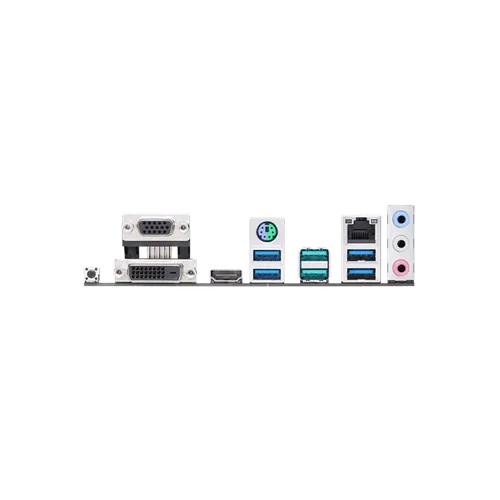

| USB / I/O (Rear & Internal) | Rear I/O: • 2 × USB 3.2 Gen 2 (Type‑A) • 4 × USB 3.2 Gen 1 (Type‑A) • PS/2 combo port • HDMI / DVI‑D / VGA • LAN (RJ‑45) • 3 × audio jacks • BIOS FlashBack / Clear CMOS function Internal headers: • 1 × USB 3.2 Gen 1 header (supports 2 ports) • 2 × USB 2.0 headers (supports 4 ports) • 1 × RGB / Aura header • Fan headers, TPM header, COM header, etc. |
| LAN / Networking | Realtek RTL8111H Gigabit Ethernet, ASUS LANGuard |
| Audio | Realtek 7.1‑channel HD Audio codec; supports jack detection, multi-streaming, front panel retasking, 24‑bit / 192 kHz playback; audio shielding and dedicated PCB audio layers |
| Fan / Cooling / Heatsinks | VRM heatsink with thermal pad; multiple hybrid fan headers; cooling controls via BIOS / software; support for CPU fan and chassis fans |
| Power / Connectors | 24-pin ATX main power connector 8-pin ATX 12V CPU power Other internal power & header connectors |
| BIOS / Firmware | 256 Mb UEFI AMI BIOS; supports BIOS FlashBack / EZ Flash / CrashFree BIOS features |
| Operating System Compatibility | Windows 7 (64-bit), Windows 10 (64-bit); newer OS support as per CPU and drivers |
| Special / Utility Features | DIGI+ VRM, EPU (energy efficiency), Fan Xpert 2+, ASUS 5X Protection III (overvoltage protection, safe slot, etc.), Q‑Design (Q‑DIMM, Q‑Slot) |
| Limitations / Notes | M.2 slot may share bandwidth with certain SATA ports (when in use, some SATA ports become unavailable) |
| Dimensions / Layout | Micro‑ATX layout; standard mounting compatibility |
