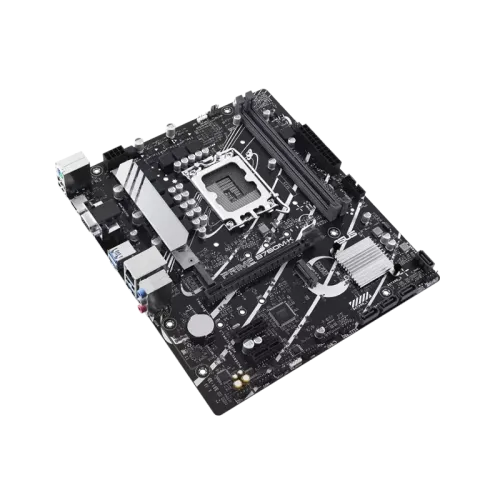

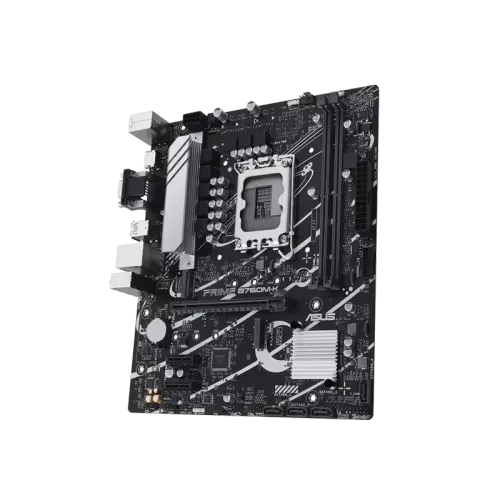

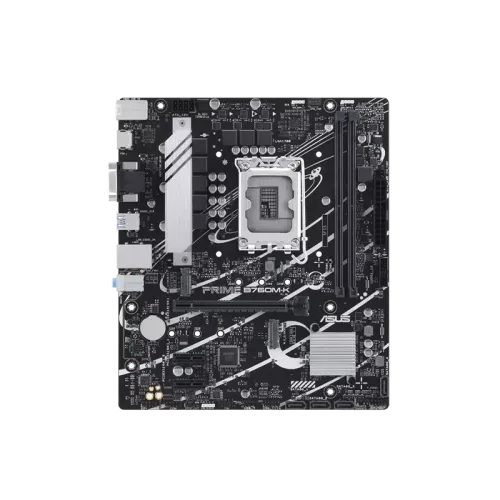

ASUS PRIME B760M-K MOTHERBOARD (3y)- 90MB1FI0-M1UAY0
COMPUTER AND ACCESSORIES
SenseLK
Rs 45,900
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Specification | Details |
|---|---|
| Model Number | 90MB1FI0-M1UAY0 |
| Chipset | Intel B760 |
| CPU Socket / Support | LGA 1700 – Supports Intel 14th, 13th & 12th Gen Core, Pentium Gold, and Celeron processors |
| Memory (RAM) | 2 × DDR5 DIMM slots, Dual-Channel, Non-ECC, Unbuffered |
| Maximum Memory Supported | Up to 96 GB |
| Memory Speed (OC / XMP) | Up to DDR5-8000 (OC) |
| Graphics / Display Outputs | 1 × HDMI (4K @ 60Hz), 1 × VGA (D-Sub) |
| Expansion Slots | 1 × PCIe 4.0 x16, 2 × PCIe 4.0 x1 |
| Storage Options | 2 × M.2 (PCIe 4.0 x4), 4 × SATA 6 Gb/s |
| RAID Support | RAID 0, 1, 5, 10 (SATA) |
| Networking | 1 × Realtek 2.5 Gb Ethernet (RJ-45) |
| Audio Codec | Realtek 7.1-Channel HD Audio with Premium Audio Capacitors and Jack Retasking |
| Rear I/O Ports | 4 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0, 1 × HDMI, 1 × VGA, 3 × Audio Jacks, 1 × LAN, 1 × PS/2 Combo |
| Internal Connectors | 1 × 24-pin ATX, 1 × 8-pin CPU, 1 × CPU fan, 2 × Chassis fan, 1 × USB 3.2 Gen 1 header, 2 × USB 2.0 headers, 2 × Addressable Gen 2 RGB headers, 1 × Aura RGB header, Front panel header, Audio header, TPM header |
| Power Design / VRM | DIGI+ VRM, Robust VRM heatsink and thermal pads |
| Protection Features | ASUS 5X Protection III: SafeSlot Core, Overvoltage Protection, LANGuard, Stainless-Steel Back I/O |
| BIOS Features | UEFI BIOS with EZ Mode, Advanced Mode, CrashFree BIOS 3, EZ Flash 3, Q-LED Core |
| Form Factor | Micro-ATX (244 mm x 213 mm) |
| OS Compatibility | Windows 11 / Windows 10 (64-bit) |
| Warranty | 3 Years Manufacturer Warranty |
