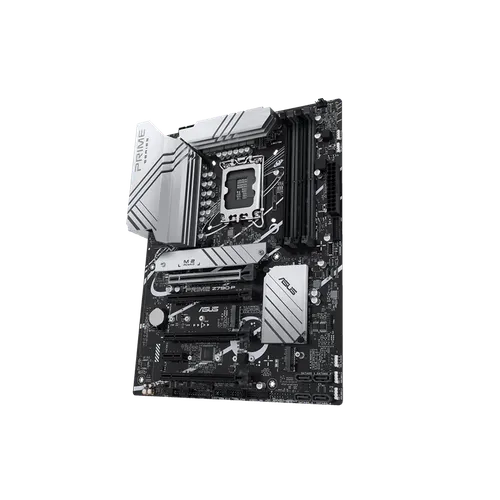

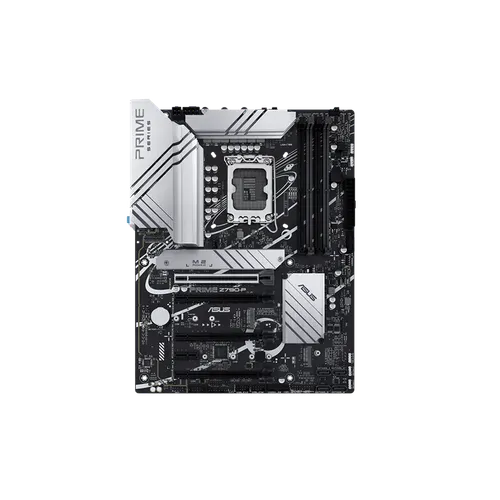

ASUS PRIME Z790-P-CSM-D5 MOTHERBOARD(3y)
COMPUTER AND ACCESSORIES
SenseLK
Rs 95,450
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Category | Specification |
|---|---|
| Model | PRIME Z790-P-CSM-D5 |
| CPU Support | Intel® Socket LGA1700, 13th & 12th Gen Intel® Core™, Pentium® Gold, Celeron®; Intel Turbo Boost 2.0/Max 3.0 |
| Chipset | Intel® Z790 |
| Memory | 4 x DDR5 DIMM, 4800–7200+(OC) MHz, Max. 192GB, Dual Channel, XMP supported, Non-ECC, Un-buffered |
| Graphics | 1 x DisplayPort 1.4 (4K@60Hz), 1 x HDMI® 2.1 (4K@60Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16, 3 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 3.0 x1 |
| Storage | 3 x M.2 slots (PCIe 4.0 x4 / SATA), 4 x SATA 6Gb/s ports; Intel® Rapid Storage Technology supports RAID 0/1/5/10 |
| Ethernet | Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi module sold separately; Vertical M.2 slot (Key E) for CNVi & PCIe Wi-Fi |
| Audio | Realtek 7.1 HD Audio CODEC, dedicated PCB layers, premium capacitors, supports 24-Bit/192 kHz playback |

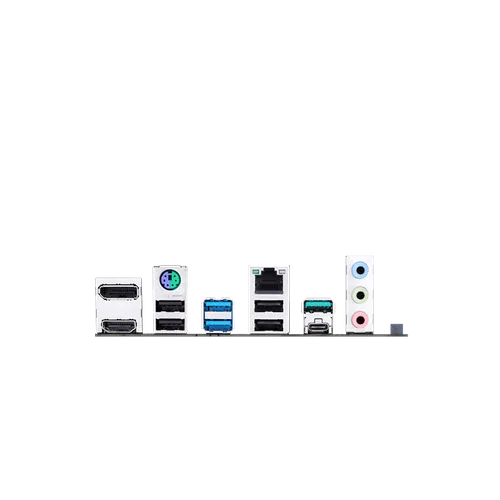

| USB Ports | Rear: 1 x USB 3.2 Gen2x2 Type-C, 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1, 4 x USB 2.0; Front: 1 x USB 3.2 Gen2 Type-C, 2 x USB 3.2 Gen1 headers, 2 x USB 2.0 headers |
| Internal Connectors | CPU/Chassis/AIO Fan headers, 24-pin Main Power, 8+4-pin CPU Power, 3 x M.2 slots, 4 x SATA, USB headers, RGB headers, Thunderbolt™ (USB4®) header, Front Panel Audio, S/PDIF Out, COM, TPM headers |
| Special Features | ASUS 5X Protection III (DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core+, Stainless-Steel Back I/O), Q-Design (Q-Slot, Q-DIMM, Q-LED Core), Flexible M.2 & VRM heatsinks, Aura Sync, ASUS EZ DIY |
| Software Features | Armoury Crate (Aura Sync, Fan Xpert 4 with AI Cooling II, Power Saving), AI Suite 3 (TurboV EVO, DIGI+ VRM, PC Cleaner), ASUS CPU-Z, Norton 360 Deluxe (60 Days), WinRAR, UEFI BIOS (CrashFree, EZ Flash 3, EZ Mode) |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | ATX, 30.5 cm x 23.4 cm (12 x 9.2 inch) |
| Warranty | 1 Year |
| Accessories | 2 x SATA 6Gb/s cables, I/O Shield, M.2 Rubber Package, 2 x M.2 screw packages, ACC Express Activation Key Card, User guide |
Product Highlights
-
High-end ATX motherboard for Intel 12th/13th Gen Core™ processors
-
Supports DDR5 memory up to 192GB with XMP and OptiMem II for extreme performance
-
3 M.2 slots and 4 SATA ports with RAID support for versatile storage
-
Realtek 2.5Gb Ethernet for fast, reliable network connectivity
-
4K-ready graphics via DisplayPort 1.4 and HDMI® 2.1
-
Multiple USB ports including Gen2x2 Type-C for high-speed data transfer
-
ASUS 5X Protection III and Q-Design ensure durability and easy installation
-
Aura Sync RGB headers and flexible cooling design for custom builds
