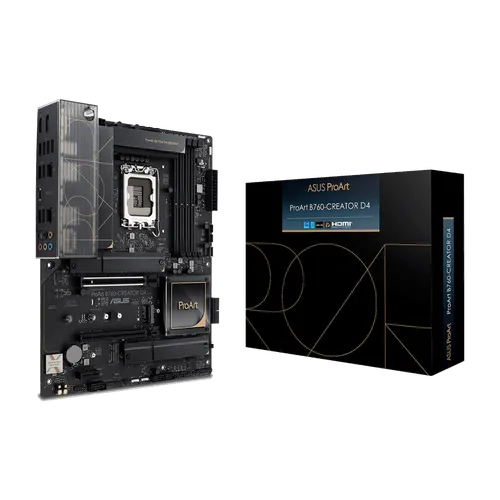

ASUS PROART B760-CREATOR D4 MOTHERBOARD(3y)- 90MB1DU0-M0UAY0
COMPUTER AND ACCESSORIES
SenseLK
Rs 100,700
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Specification | Details |
|---|---|
| Model / Part Number | ASUS ProArt B760-CREATOR D4 (90MB1DU0-M0UAY0) |
| Form Factor | ATX (30.5 cm x 24.4 cm) |
| Socket Type | LGA 1700 |
| Chipset | Intel B760 |
| CPU Compatibility | Supports 12th and 13th Gen Intel Core processors |
| Memory Slots | 4 x 288-pin DDR4 DIMM |
| Maximum Memory Capacity | Up to 128 GB |
| Memory Support | DDR4 5333 MHz (OC), 4800 MHz (native), Dual Channel |
| ECC Support | No |
| Expansion Slots | 1 x PCIe 5.0 x16 (x16 mode) 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x1 |
| Storage Interfaces | 3 x M.2 slots (M Key) 4 x SATA 6Gb/s ports |
| M.2 Slot Specifications | 2 x M.2 PCIe 4.0 x4 (2242/2260/2280/22110) 1 x M.2 PCIe 3.0 x4 (2242/2260/2280/22110) |
| RAID Support | RAID 0, 1, 5, 10 (SATA) |
| USB Ports | Rear I/O: 1 x USB 3.2 Gen 2x2 Type-C 4 x USB 3.2 Gen 1 Type-A 4 x USB 2.0 Type-A Front Panel: 1 x USB 3.2 Gen 2x2 Type-C header 1 x USB 3.2 Gen 1 header 2 x USB 2.0 headers |
| Networking | 1 x Realtek 2.5 Gb Ethernet 1 x Intel 1 Gb Ethernet |
| Audio | Realtek ALC1220 7.1-Channel High Definition Audio Codec |
| Display Outputs | 1 x HDMI 2.1 (4K@60Hz) 1 x DisplayPort 1.4 (8K@60Hz) |
| Front Panel Connectors | 1 x USB 3.2 Gen 2x2 Type-C header 1 x USB 3.2 Gen 1 header 2 x USB 2.0 headers 1 x Audio header 1 x RGB header 1 x Thunderbolt header |
| Cooling | 2 x 4-pin CPU fan headers 4 x 4-pin chassis fan headers 1 x 4-pin pump header 1 x Thermal sensor header |
| Power Connectors | 1 x 24-pin ATX main power connector 1 x 8-pin + 1 x 4-pin CPU power connectors |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Operating System Support | Windows 10, Windows 11 |
| Warranty | 3 years |
