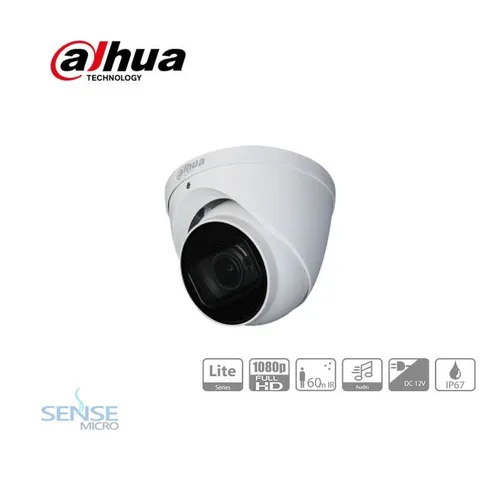

CCTV CAMERA - DAHUA HAC-HDW1200TP-Z-A-S4 2MP HDCVI IR
SECURITY SOLUTIONS
SenseLK
Rs 17,000
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Camera | |
| Image Sensor | 1/2.7" CMOS |
| Effective Pixels | 1920(H)×1080(V), 2MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | PAL: 1/25~1/100000s
NTSC: 1/30~1/100000s |
| Minimum Illumination | 0.02Lux/F1.8, 30IRE, 0Lux IR on |
| S/N Ratio | More than 65dB |
| IR Distance | Up to 60m (197feet) |
| IR On/Off Control | Auto / Manual |
| IR LEDs | 2 |
| Lens | |
| Lens Type | Motorized lens / Fixed iris |
| Mount Type | Board-in |
| Focal Length | 2.7-12mm |
| Max Aperture | F1.8 |
| Angle of View | H: 105.9°~33.4° |
| Focus Control | Motorized |
| Close Focus Distance | 200mm
7.87'' |
| DORI Distance | |||
| Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | |||
| DORI
Definition |
Distance | ||
| Wide | Tele | ||
| Detect | 25px/m (8px/ft) | 45m(148ft) | 132m(433ft) |
| Observe | 63px/m (19px/ft) | 18m(59ft) | 53m(173ft) |
| Recognize | 125px/m (38px/ft) | 9m(30ft) | 26m(87ft) |
| Identify | 250px/m (76px/ft) | 5m(15ft) | 13m(43ft) |
| Pan/Tilt/Rotation | |
| Pan/Tilt/Rotation | Pan: 0° ~ 360°
Tilt: 0° ~ 78° Rotation: 0° ~ 360° |
| Video | |
| Resolution | 1080P (1920×1080) |
| Frame Rate | 25/30fps@1080P, 25/30/50/60fps@720P |
| Video Output | 1-channel BNC high definition video output / CVBS video output (Can switch) |
| Day/Night | Auto (ICR) / Manual |
| OSD Menu | Multi-language |
| BLC Mode | BLC / HLC / DWDR |
| WDR | DWDR |
| Gain Control | AGC |
| Noise Reduction | 2D |
| White Balance | Auto / Manual |
| Smart IR | Auto / Manual |
| Certifications | |
| Certifications | CE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
| Interface | |
| Audio Interface | Built-in Mic |
| Eelectrical | |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max 8.2W (12V DC, IR on) |
| Environmental | |
| Operating Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH
* Start up should be done at above -30°C (-22°F) |
| Storage Conditions | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 95% RH |
| Ingress Protection & Vandal Resistance | IP67 |
| Construction | |
| Casing | Aluminium |
| Dimensions | Φ122mm×104mm (Φ4.8"×4.1") |
| Net Weight | 0.57kg (1.26lb) |
| Gross Weight | 0.72kg (1.59lb) |
Product Highlights
-
Full HD 1080P with up to 30fps for crisp video capture.
-
Motorized 2.7–12mm lens allows remote adjustment of zoom and focus.
-
Smart IR technology ensures clear night vision up to 60 meters.
-
Built-in microphone for audio surveillance.
-
IP67 weatherproof design, ideal for outdoor installations.
-
Flexible video output: switch between HD (HDCVI) and SD (CVBS).
-
Compact eyeball design with pan/tilt/rotation for flexible mounting.
-
Reliable operation from -30°C to +60°C.
