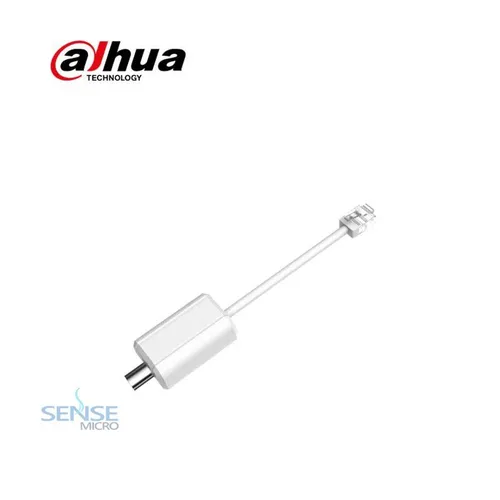

CCTV CONVERTER - DAHUA LR1002 EoC PASSIVE CONVERTER
SECURITY SOLUTIONS
SenseLK
Rs 3,900
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Technical Specification | |
| Model | LR1002 |
| Function Port | 1*10/100 Mbps Base-TX
1*BNC |
| Power Consumption | <1W |
| Transmission Bandwidth | RG59 coaxial cable:
400m/100Mbps, 1000m/10Mbps |
| PoE Protocol | -
(Based on the power input from the ePoE switch) |
| Network Standard | IEEE802.3, IEEE802.3u |
| Lightning Protection | Common Mode 6KV
Differential Mode 2KV |
| Operating Temperature | -40°C-60°C |
| Operating Humidity | 0%~95% |
| Weight | 28.3g |
| Dimension (W×D×H) | 56mm×27mm×21mm |
| Cable Length (m) | Communication Bandwidth (Mbps) | PoE Max Load Capacity (W) | Hi-PoE Max Load Capacity (W) | Network Operating Mode |
| 100 | 100 | 25.5 | 50 | IEEE/E100 |
| 200 | 100 | 25.5 | 30 | E100 |
| 300 | 100 | 18 | 18 | E100 |
| 400 | 100 | 15 | 15 | E100 |
| 500 | 10 | 12 | 12 | E10 |
| 800 | 10 | 6 | 6 | E10 |
| 1000 | 10 | 5 | 5 | E10 |
| ePoE switch power supply voltage is 48V.
The cable is RG59 coaxial cable, 100m DC impedance is no more than 5Ω. |
||||
| 100 | 100 | 25.5 | 52 | IEEE/E100 |
| 200 | 100 | 25.5 | 48 | E100 |
| 300 | 100 | 25.5 | 30 | E100 |
| 400 | 100 | 20 | 23 | E100 |
| 500 | 10 | 16 | 16 | E10 |
| 800 | 10 | 10 | 10 | E10 |
| 1000 | 10 | 8 | 8 | E10 |
