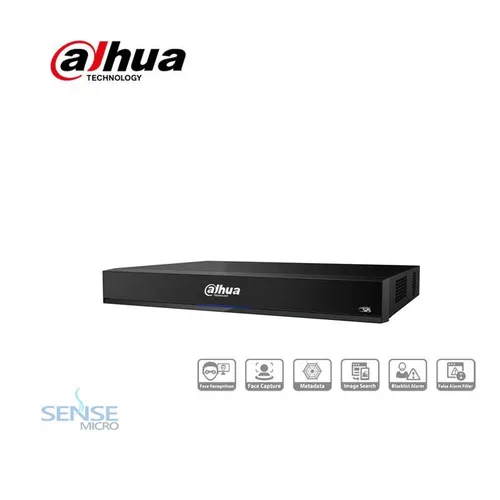

CCTV XVR - DAHUA DH-XVR8208A-4K-I 8CH PENTA BRID 4K 1U
SECURITY SOLUTIONS
SenseLK
Rs 220,900
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| System | |
| Main Processor | Embedded Processor |
| Operating System | Embedded LINUX |
| Perimeter Protection | |
| Performance | 16 channel, 10 IVS rules for each channel |
| Object classification | Human/Vehicle secondary recognition for tripwire and intrusion |
| AI Search | Search by target classification (Human, Vehicle) |
| Face Recognition | |
| Performance | Max 24 face pictures /sec processing (modeling and comparing) |
| Up to 6 channel video stream (analog channel max. supports 4 channel) human face recognition | |
| Up to 16 channel picture stream human face recognition | |
| Stranger Mode | Detect strangers' faces(not in device's face database).Similarity threshold can be set manually. |
| AI Search | Up to 8 target face images search at same time, similarity threshold can be set for each target face image. |
| Database Management | Up to 20 face databases with 100,000 face images in total. Name, gender, birthday, nationality, address, ID information can be added to each face picture. |
| Database Application | Each database can be applied to video channels independently. |
| Trigger Events | Buzzer, Voice Prompts, Email, Snapshot, Recording, Alarm Out, PTZ Activation, etc. |
| Metadata | |
| Face | Gender, age, glasses, beard, mask. |
| Human body | top, top color, bottom, bottom color, hat, bag, gender, age, and umbrella |
| Motor vehicle | Plate No., vehicle color, type, logo, plate color, ornament, calling, and seatbelt |
| Non-motor Vehicle | type, vehicle color, people number, and helmet |
| AI Search | Support search target video by metadata. |
| Video and Audio | |
| Analog Camera Input | 8 Channel, BNC |
| HDCVI Camera | 4K, 6MP, 5MP, 4MP, 1080P@25/30 fps, 720P@50/60 fps, 720P@25/30 fps |
| AHD Camera | 5MP, 4MP, 3MP, 1080P@25/30fps, 720P@25/30 fps |
| TVI Camera | 5MP, 4MP, 3MP, 1080P@25/30fps, 720P@25/30 fps |
| CVBS Camera | PAL/NTSC |
| IP Camera Input | 64 Channel, each channel up to 12MP |
| Audio In/Out | 4/1, RCA |
| Two-way Talk | Mic in & reuse Audio out for Mic out, RCA |
| Recording | |
| Compression | H.265+, H.265, H.264+, H.264 |
| Resolution | 4K, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, 960H, D1, CIF |
| Record Rate | Main stream: 4K (1 fps–15 fps); 6MP/5MP (1 fps–20 fps); 4MP/3MP/1080P/720P/960H/D1/CIF (1 fps–25/30 fps)
Sub steram:960H (1 fps–15 fps); D1/CIF (1 fps–25/30 fps) |
| Bit Rate | 32 Kbps–8192 Kbps Per Channel |
| Record Mode | Manual, Schedule (General, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop |
| Record Interval | 1 min–60 min (default: 60 min), Pre-record: 1sec–30 sec, Post-record: 10sec–300 sec |
| Display | |
| Interface | 2 HDMI, 1 VGA |
| Resolution | HDMI 1: 3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 1024, 1280 × 720
HDMI2/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Multi-screen Display | When IP extension mode not enabled: 1/4/8/9
When IP extension mode enabled: 1/4/8/9/16/25/36 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Network | |
| Interface | 2 RJ-45 Ports (1000 M) |
| Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, Wi-Fi, 3G/4G, SNMP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP camera, DVR, NVS, etc.) |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 16.12, CGI Conformant |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss, Tampering and Diagnosis |
| Alarm input | 16 |
| Relay Output | 3 |
| Playback and Backup | |
| Playback | 1/4/9 |
| Search Mode | Time/Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network |
| Storage | |
| Internal HDD | 2 SATA Ports, up to 10 TB capacity for each disk |
| eSATA | N/A |
| Auxiliary Interface | |
| USB | 3 USB Ports (1 USB 2.0 , 2 USB 3.0) |
| RS232 | 1 port, For PC communication & Keyboard |
| RS485 | 1 Port, for PTZ Control |
| Electrical | |
| Power Supply | DC 12V/5A |
| Power Consumption | <20W (Without HDD) |
| Construction | |
| Dimensions | 1U, 375 mm × 328 mm × 50 mm (14.8" × 12.9" × 2.0") |
| Net Weight | 2.35 kg (5.2 lb) (without HDD) |
| Gross Weight | 3.2 kg (7.05 lb) |
| Installation | Desktop installation |
| Environmental | |
| Operating Conditions | -10°C to +55°C (+14°F to +131°F), 0%RH–90%RH |
| Storage Conditions | -20°C to +70°C (-4°F to +158°F) , 0%RH–90%RH |
