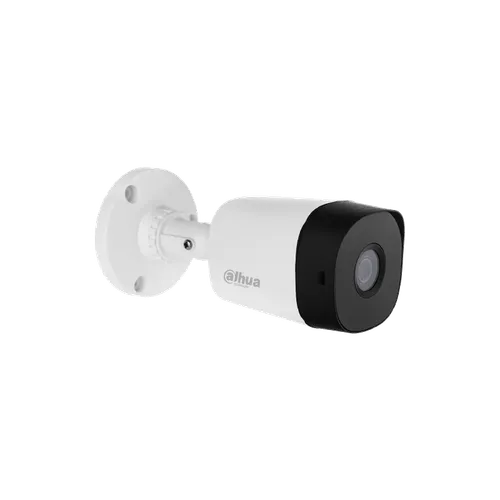

DAHUA DH-HAC-B1A21P-U-0360B 2MP IR HDCVI CAMERA (2y)
SECURITY SOLUTIONS
SenseLK
Rs 6,000
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
Dahua DH‑HAC‑B1A21P‑U‑0360B 2MP IR HDCVI Camera
| Specification Category | Detail / Value |
|---|---|
| Brand / Series | Dahua / Cooper series |
| Model | DH‑HAC‑B1A21P‑U‑0360B |
| Warranty | 2 years (as per regional seller) |
| Sensor / Imaging | 1/2.7″ CMOS sensor, 2 megapixel resolution |
| Maximum Resolution | 1920 × 1080 (1080p) |
| Signal System / Output Options | Switchable: HDCVI / CVBS / AHD / TVI (via single BNC port) |
| Frame Rate | • HDCVI / AHD / TVI: up to 30 fps @ 1080p (NTSC) • 25 fps in PAL region |
| Scanning Method | Progressive |
| Electronic Shutter | PAL: 1/25 s to 1/100,000 s NTSC: 1/30 s to 1/100,000 s |
| Minimum Illumination | • Color mode: ~0.02 lux @ F2.0 • B/W mode: ~0.002 lux @ F2.0 • 0 lux with IR on |
| Signal-to-Noise Ratio (SNR) | > 65 dB |
| IR / Illumination | • IR LEDs (2) for night vision • “Smart IR” to adjust intensity based on distance • Effective IR range: up to ~20 m |
| Warm Light / Dual‑illuminator (if variant supports it) | Some variants support warm white light in addition to IR (for color at night) |
| Lens / Optics | Fixed-focal lens (M12 mount) |
| Available Focal Lengths | 2.8 mm / 3.6 mm / 6 mm options (depending on sub-model) |
| Aperture | F2.0 |
| Field of View (FOV) | • 2.8 mm: ~100° H × 54° V • 3.6 mm: ~80° H × 43° V • 6 mm: ~43° H × 24° V |
| Close Focus Distance | • 2.8 mm: ~0.5 m • 3.6 mm: ~0.8 m • 6 mm: ~2.4 m |
| DORI (Detect / Observe / Recognize / Identify) Distances | • 2.8 mm: 44.7 / 17.9 / 8.9 / 4.5 m • 3.6 mm: 55.0 / 22.0 / 11.0 / 5.5 m • 6 mm: 102.9 / 41.1 / 20.6 / 10.3 m |
| Day / Night & WDR / Enhancement Features | ICR (cut filter) for day/night switching DWDR / Digital WDR BLC / HLC 2D noise reduction Mirror / Flip Privacy masking (8 zones) |
| White Balance / Gain Control | Auto / Area white balance Gain control: Auto / Manual |
| Video Output | Single BNC output supporting HDCVI / analog modes |
| Power / Consumption | 12 VDC ± 30% Maximum power consumption ~ 3.3 W (with IR on) |
| Operating Conditions | –40 °C to +60 °C Humidity: < 95% RH (non‑condensing) |
| Ingress Protection / Housing | IP67 rated (waterproof, dust-tight) |
| Housing / Construction | Durable outdoor-grade plastic or polycarbonate housing |
| Dimensions | ~ 146.1 mm × 70.0 mm × 69.8 mm (length × width × height) |
| Weight (Net) | ~ 0.15 kg (150 g) |
| Mounting Options | Wall mount, ceiling mount, vertical pole mount support |
| Certifications / Compliance | CE, FCC, EMC / LVD standards (depending on region) |
