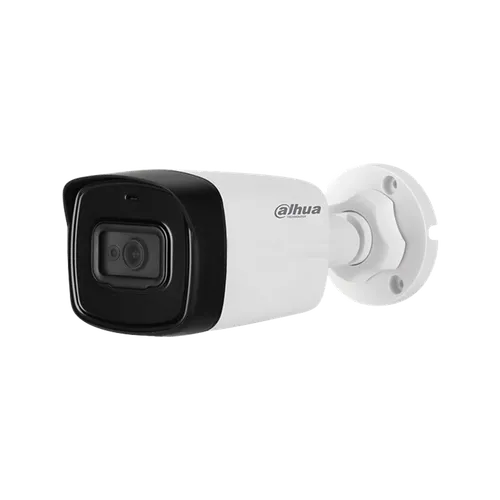

DAHUA DH-HAC-B1A21P-U-IL-A 3.6MM 2MP 30M IR SMART DUAL LIGHT HDCVI CAMERA(2y)
SECURITY SOLUTIONS
SenseLK
Rs 7,000
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Category | Specification | Details |
|---|---|---|
| General | Model | DH‑HAC‑B1A21P‑U‑IL‑A |
| Resolution | 2 MP (1920 × 1080) | |
| Series / Type | Smart Dual‑Light HDCVI Bullet Camera | |
| Warranty | 2 Years | |
| Image Sensor / Video | Image Sensor | 2 MP CMOS |
| Scanning System | Progressive | |
| Maximum Frame Rate | Up to 1080p@30fps | |
| Lens & Field of View | Lens Type | Fixed‑focal |
| Focal Length | 3.6 mm fixed (alternatively 2.8 mm or 6 mm versions) | |
| Maximum Aperture | F2.0 | |
| Field of View (3.6 mm) | Horizontal ~80°, Vertical ~43°, Diagonal ~94° | |
| Close Focus Distance | Approx. 0.8 m | |
| Illumination & Night Vision | Minimum Illumination (Colour) | ~0.02 lux @ F2.0 |
| Minimum Illumination (B/W) | ~0.002 lux @ F2.0 | |
| Smart Dual Light | Yes – built‑in warm white LEDs + IR LEDs | |
| Illumination Distance | IR up to 30 m; Warm white LED up to 20 m | |
| Video / Image Features | Multi‑format Support | CVI / TVI / AHD / CVBS (switchable) |
| Noise Reduction | 2D‑NR | |
| Wide Dynamic Range / Backlight Control | DWDR / BLC / HLC & Smart Illumination | |
| Day/Night Mode | Auto (ICR) / Colour / B/W | |
| Audio | Built‑in Microphone | Yes – integrated mic for audio capture |
| Power / Electrical | Power Supply | 12 V DC ±30% |
| Power Consumption | Max approx. 3.3 W (LED on) | |
| Environment & Protection | Ingress Protection Rating | IP67 (dust‑tight, water‑proof) |
| Operating Temperature | –40 °C to +60 °C | |
| Operating Humidity | < 95% RH (non‑condensing) | |
| Physical & Mechanical | Dimensions (approx.) | ~146.1 mm × 70 mm × 69.8 mm |
| Net Weight | Approx. 0.15 kg | |
| Installation & Mounting | Mounting Options | Wall mount, ceiling, vertical pole mount |
