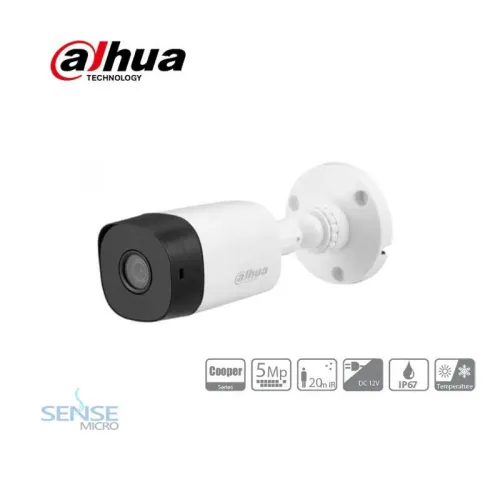

DAHUA DH-HAC-B1A51P-U-IL-0360B 5MP 30M IR DUAL LIGHT HDCVI CAMERA (2y)

Product Name: Dahua DH-HAC-B1A51P-U-IL-0360B 5 MP Smart Dual Light HDCVI Fixed-Focal Bullet Camera with 2-year warranty

Image Sensor: 5 MP CMOS sensor with progressive scanning, providing sharp 2880 × 1620 resolution

Frame Rate: Supports up to 25 frames per second at 5 MP resolution

Day/Night Function: Electronic Day/Night with IR-cut filter; modes include Auto (ICR), Color, and Black & White

Illumination: Features Smart Dual Light technology with infrared LEDs (up to 30 m range) and warm white LEDs (up to 20 m range), controllable automatically or manually

Minimum Illumination:

• Color mode: 0.02 lux at F2.0

• Black & White mode: 0.002 lux at F2.0

• 0 lux when LEDs are active

Lens: Fixed-focal M12 mount lens available in 2.8 mm, 3.6 mm (standard), and 6 mm options; aperture F2.0

Field of View (FOV):

• 2.8 mm lens: ~100° horizontal × 54° vertical

• 3.6 mm lens: ~80° horizontal × 43° vertical

• 6 mm lens: ~43° horizontal × 24° vertical

Close Focus Distance:

• 2.8 mm: 0.5 m

• 3.6 mm: 0.8 m

• 6 mm: 2.4 m

DORI Range (Detect, Observe, Recognize, Identify):

• 2.8 mm: 66 m / 26.4 m / 13.2 m / 6.6 m

• 3.6 mm: 76 m / 30.4 m / 15.2 m / 7.6 m

• 6 mm: 120 m / 48 m / 24 m / 12 m

Image Enhancement: Supports Digital WDR, Backlight Compensation (BLC), Highlight Compensation (HLC), 2D noise reduction, high signal-to-noise ratio (>65 dB), automatic/area white balance, and privacy masking with up to 8 zones

Video Output: Switchable between HDCVI, CVBS, AHD, and TVI via single BNC connector

Audio: Built-in microphone with 2D noise filtering for clear sound capture

Power Supply: 12 V DC ± 30% with typical power consumption between 3.3 W (LEDs off) and 4.0 W (LEDs on)

Environmental Specs:

• Operating Temperature: –40°C to +60°C

• Humidity: Less than 95% non-condensing

• Protection: IP67-rated weatherproof housing for harsh environments

Construction: Durable plastic housing designed for long-term outdoor use

Physical Dimensions: Approximately 146.1 mm × 70.0 mm × 69.8 mm

Weight: Around 150–230 grams depending on configuration

Installation: Supports wall, ceiling, or vertical pole mounting for flexible deployment

Certifications: Meets CE-LVD and CE-EMC standards for safety and electromagnetic compatibility

Firmware Requirement: Compatible with XVR firmware version V4.001.0000004.1.R.220323 or later for Smart Dual Light 16:9 support

Summary: An ideal camera for high-resolution surveillance with excellent night vision via dual lighting, versatile video output, robust weather protection, and efficient power use—perfect for cost-effective upgrades from analog to HD systems with peace of mind from a 2-year warranty
