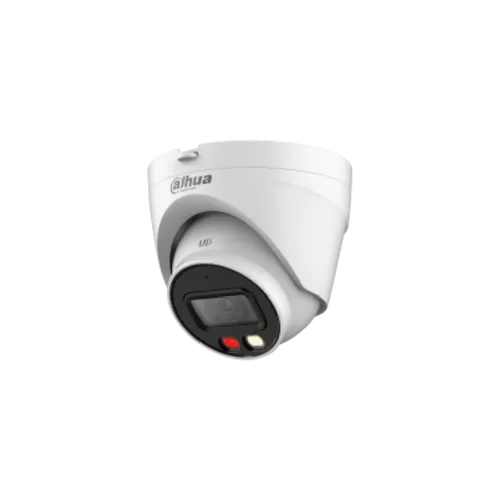

DAHUA DH-HAC-HDW1200TP-IL-A-0280B-S6 2MP SMART LIGHT HDCVI EYEBALL CAMERA(2y)

Model: DH-HAC-HDW1200TP-IL-A-0280B-S6

Camera Type: Eyeball-style HDCVI camera with Smart Dual-Light technology

Resolution: 2MP Full HD (1920 × 1080)

Image Sensor: 1/2.7" CMOS progressive scan

Frame Rate: 1080p at 30fps (NTSC) or 25fps (PAL)

Video Output: Switchable between HDCVI, TVI, AHD, and CVBS formats

Minimum Illumination:

• 0.01 lux (color, F2.0, 30IRE)

• 0.001 lux (B/W)

• 0 lux with IR or LED on

Smart Illumination:

• Two IR LEDs + two warm white LEDs

• Range: up to 40 meters

• Modes: Smart IR, Warm Light, or both

Lens: Fixed 2.8 mm (optional 3.6 mm)

Aperture: F2.0

Field of View (2.8 mm):

• Horizontal: 102°

• Vertical: 60°

• Diagonal: 129°

Field of View (3.6 mm):

• Horizontal: 83°

• Vertical: 48°

• Diagonal: 105°

Close Focus Distance:

• 2.8 mm: 0.5 m

• 3.6 mm: 0.7 m

DORI Distances (2.8 mm):

• Detect: 41.1 m

• Observe: 16.5 m

• Recognize: 8.3 m

• Identify: 4.1 m

Image Enhancements:

• Digital Wide Dynamic Range (DWDR)

• Backlight Compensation (BLC)

• Highlight Compensation (HLC)

• 3D Noise Reduction (3DNR)

• Mirror function

Day/Night Mode: Auto switching with mechanical IR cut filter

Audio: Built-in microphone (mono)

Pan/Tilt/Rotation:

• Pan: 0°–360°

• Tilt: 0°–78°

• Rotation: 0°–360°

Ingress Protection: IP67-rated for outdoor use

Operating Conditions:

• Temperature: –40 °C to +60 °C

• Humidity: <95% RH (non-condensing)

Power Supply: 12V DC ±30%

Power Consumption: Max 4.1W (with LEDs on)

Casing: Rugged metal housing

Dimensions: Ø106 mm × 99.2 mm

Weight: Approx. 450g net

Certifications: CE, FCC, UL compliant

Installation: Suitable for wall or ceiling mount

Warranty: 2 years manufacturer warranty
