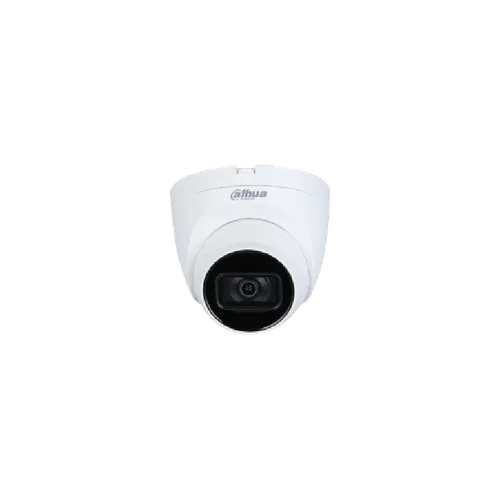

DAHUA DH-HAC-HDW1231TQP-A-0280 2MP IR HDCVI CAMERA(2y)
SECURITY SOLUTIONS
SenseLK
Rs 10,700
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Camera | |||||
| Image Sensor | 1/2.8" CMOS | ||||
| Max. Resolution | 1920 (H) × 1080 (V) | ||||
| Pixel | 2MP | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | PAL: 1/25 s–1/100,000 s NTSC: 1/30 s–1/100,000 s |
||||
| S/N Ratio | > 65 dB | ||||
| Min. Illumination | 0.002 Lux/F1.6, 30 IRE, 0 Lux IR on | ||||
| Illumination Distance | 40 m (131.2 ft) | ||||
| Illuminator On/Off Control | Auto; manual | ||||
| Illuminator Number | 1 (IR light) | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
||||
| Lens | |||||
| Lens Type | Fixed lens | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8 mm; 3.6 mm; 6 mm | ||||
| Max. Aperture | F1.6 | ||||
| Field of View | 2.8 mm: H: 107°; V: 56°; D: 127° | ||||
| Iris Type | Fixed iris | ||||
| Close Focus Distance | 2.8 mm: 0.7 m (2.3 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 43.9 m (144 ft) | 17.5 m (57.4 ft) | 8.8 m
(28.9 ft) |
4.4 m
(14.4 ft) |
|
| Video | |||||
| Frame Rate | CVI: PAL: 1080P@25 fps; NTSC: 1080P@30 fps; AHD: PAL: 1080P@25 fps; NTSC: 1080P@30 fps; TVI: PAL: 1080P@25 fps; NTSC: 1080P@30 fps; CVBS: PAL: 960 × 576H; NTSC: 960 × 480H |
||||
| Resolution | 1080P (1920 × 1080); 960H (960 × 576/960 × 480); | ||||
| Day/Night | Auto switch by ICR | ||||
| BLC | BLC/WDR/HLC | ||||
| WDR | 130 dB | ||||
| White Balance | Auto; manual | ||||
| Gain Control | Auto; manual | ||||
| Noise Reduction | 3D NR | ||||
| Smart IR | Yes | ||||
| Mirror | Off/On | ||||
| Privacy Masking | Off/On (8 area, rectangle) | ||||
| Certifications | |||||
| Certifications | CE (EN55032, EN55024, EN50130-4) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014) UL (UL60950-1+CAN/CSA C22.2 No.60950-1) |
||||
| Port | |||||
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port | ||||
| Audio Input | One channel built-in mic | ||||
| Power | |||||
| Power Supply | 12V ±30% DC | ||||
| Power Consumption | Max 3.1 W (12V DC, IR on) | ||||
| Environment | |||||
| Operating Temperature | –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) | ||||
| Storage Temperature | –40°C to +60°C (–40°F to 140°F); < 95% (non-condensation) | ||||
| Protection Grade | IP67 | ||||
| Structure | |||||
| Casing | Metal inner core+plastic cover+plastic pedestal | ||||
| Camera Dimensions | Φ109.9 mm × 100.9 mm (Φ4.33" × 3.97") | ||||
| Net Weight | 0.32 kg (0.71 lb) | ||||
| Gross Weight | 0.49 Kg (1.08 lb) |
