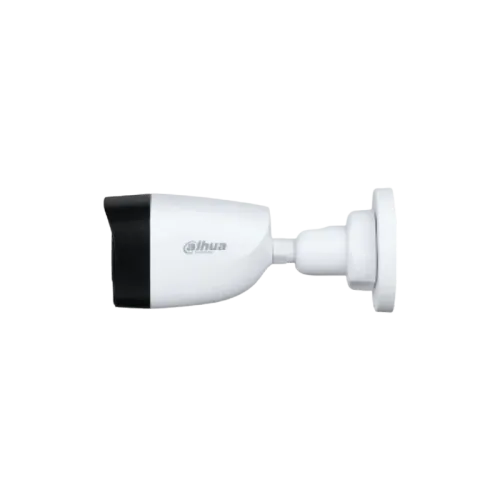

DAHUA DH-HAC-HFW1509CP-A-LED 3.6MM 5MP FULL COLOR HDCVI CAMERA(2y)
SECURITY SOLUTIONS
SenseLK
Rs 16,100
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Category | Specification | Details |
|---|---|---|
| General | Model | DH‑HAC‑HFW1509CP‑A‑LED |
| Series | 5 MP Full‑Color HDCVI Bullet | |
| Warranty | 2 Years | |
| Image Sensor & Resolution | Sensor | 5 MP CMOS |
| Maximum Resolution | 2880 × 1620 (5 MP, 16:9) | |
| Scanning System | Progressive | |
| Signal‑to‑Noise Ratio | > 65 dB | |
| Lens & Field of View | Focal Length | 3.6 mm fixed |
| Maximum Aperture | F1.0 | |
| Field of View (3.6 mm) | Horizontal ~88°; Vertical ~46°; Diagonal ~104° | |
| Close Focus Distance | Approx. 2.3 m (7.5 ft) | |
| Illumination & Night Vision | Minimum Illumination | 0.001 Lux @ F1.0 (colour mode); 0 Lux with warm‑light on |
| Built‑in Illumination | Warm white LEDs for full‑colour imaging | |
| Illumination Distance | Up to ~20 m (65.6 ft) | |
| Video & Image Processing | Output & Frame Rate | Max 25 fps @5 MP (16:9) |
| Video Format Support | CVI / AHD / TVI / CVBS switchable | |
| Wide Dynamic Range (WDR) | 120 dB true WDR | |
| Noise Reduction | 3D‑NR or 2D NR depending variant | |
| Day/Night Mode | 24/7 colour imaging | |
| Mirror / Privacy Masking | Available – up to 8 zones | |
| Audio (‑A variant) | Built‑in Microphone | Yes (audio over coax) |
| Transmission & Output | Video Output Port | Single BNC port supporting multiple formats |
| Power & Consumption | Power Supply | 12 V DC (±30%) |
| Maximum Power Consumption | Approx. 3.5 W (12 V DC with warm‑light on) | |
| Environment & Protection | Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | < 95% (non‑condensing) | |
| Protection Rating | IP67 (dust‑tight, water immersion safe) | |
| Mechanical & Physical | Casing | Metal front cover + plastic body + metal bracket |
| Dimensions | Approx. 163.4 mm × 69.7 mm × 70.0 mm (6.4″ × 2.8″ × 2.8″) | |
| Net Weight | Approx. 0.26 kg | |
| Installation & Compatibility | Mounting Options | Wall or ceiling mountable |
| Firmware Upgrade Requirement | For 16:9 5 MP output, DVR firmware may need version V4.001.0000001.0.R.200908 or later | |
| Certifications | Compliance | CE (EN55032 / EN55024 / EN50130‑4 / EN62368‑1), FCC Part 15B, UL60950‑1 |
