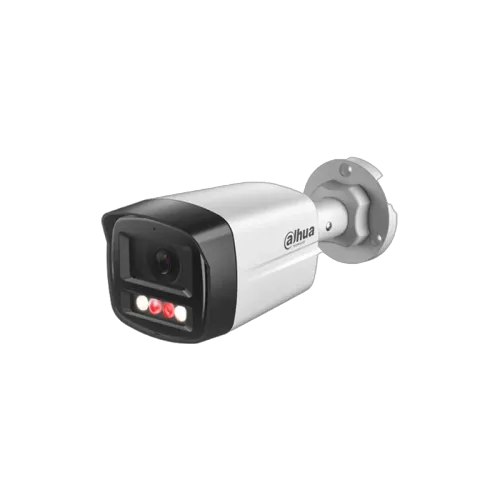

DAHUA DH-IPC-HFW1439TL1-A-IL-0360B 4MP BULLET IP CAMERA(2y)
SECURITY SOLUTIONS
SenseLK
Rs 20,900
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Image Sensor | 1/2.9″ CMOS |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 128 MB |
| RAM | 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.006 [email protected] (Color,30 IRE) 0.0006 [email protected] (B/W,30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | Up to 30 m (98.43 ft) (IR LED) Up to 30 m (98.43 ft) (Warm light) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 2 (IR LED); 2 (Warm light) |
| Angle Adjustment | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
| Lens | |
| – Lens Type | Fixed-focal |
| – Lens Mount | M12 |
| – Focal Length | 2.8 mm;3.6 mm |
| – Max. Aperture | F1.6 |
| – Field of View | 2.8 mm: H: 94°; V: 52°; D: 111° 3.6 mm: H: 78°; V: 41°; D: 94° |
| – Iris Control | Fixed |
| – Close Focus Distance | 2.8 mm: 1.1 m (3.61 ft) 3.6 mm: 1.7 m (5.58 ft) |
| – DORI Distance | Lens Detect Observe Recognize |
| – 2.8 mm | 64.0 m (209.97 ft) 25.6 m (83.98 ft) 12.8 m (41.99 ft) 6.4 m (21.00 ft) |
| – 3.6 mm | 85.4 m (280.18 ft) 34.2 m (112.20 ft) 17.1 m (56.10 ft) 8.5 m (27.89 ft) |
| Intelligence | |
| – Human Detection | Support the classification and accurate detection of human |
| – Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| – Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| – Smart Codec | Smart H.265+; Smart H.264+ |
| – Video Frame Rate | Main stream: 2560 × 1440@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| – Stream Capability | 2 streams |
| – Resolution | 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| – Bit Rate Control | CBR/VBR |
| – Video Bit Rate | H.264: 32 kbps–4096 kbps H.265: 12 kbps–4096 kbps |
| – Day/Night | Auto(ICR)/Color/B/W |
| – BLC | Yes |
| – HLC | Yes |
| – WDR | 120 dB |
| – White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| – Gain Control | Auto; Manual |
| – Noise Reduction | 3D NR |
| – Motion Detection | OFF/ON (4 areas, rectangular) |
| – Region of Interest (RoI) | Yes (4 areas) |
| – Smart Illumination | Yes |
| – Image Rotation | 0°/180° |
| – Mirror | Yes |
| – Privacy Masking | 4 areas |
| Audio | |
| – Built-in MIC | Yes, built-in Mic |
| – Audio Compression | G.711a; G.711Mu; PCM; G.726 |
| Alarm | |
| Network | |
| – Network Port | RJ-45 (10/100 Base-T) |
| – SDK and API | Yes |
| – Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P |
| – Interoperability | ONVIF (Profile S; Profile T); CGI |
| – User/Host | 6 (Total bandwidth: 24 M) |
| – Storage | FTP |
| – Browser | IE; Chrome; Firefox |
| – Management Software | Smart PSS Lite; DSS; DMSS |
| – Mobile Client | iOS; Android |
| – Cyber Security | Configuration encryption; Trusted execution; Digest; Security logs; HTTPS; Trusted upgrade; WSSE; Trusted boot; Account lockout; Generation and importing of X.509 certification; Video encryption |
| Certification | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| Power | |
| – Power Supply | 12 VDC/PoE (802.3af) |
| – Power Consumption | Basic: 2 W (12 VDC); 2.9 W (PoE) Max. (H.265 + intelligence on+ WDR + illuminator intensity): 6.4 W (12 VDC); 7.7 W (PoE) |
| Environment | |
| – Operating Temperature | –40 °C to +60 °C ( |
