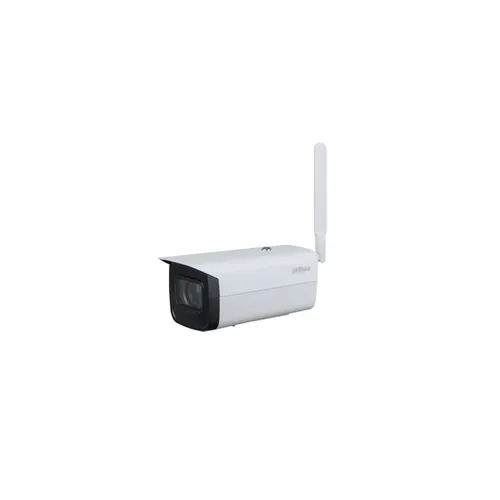

DAHUA DH-IPC-HFW3241DF-AS-4G-0360 2MP IR WIZSENSE 4G NETWORK CAMERA(2y)
SECURITY SOLUTIONS
SenseLK
Rs 80,500
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Camera | |||||
| Image Sensor | 1/2.8” CMOS | ||||
| Effective Pixels | 1920 (H) × 1080 (V) | ||||
| ROM | 128 MB | ||||
| RAM | 512 MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||
| Min. Illumination | 0.002 [email protected](Color,30IRE)
0.0002 [email protected](B/W,30IRE) 0 lux (Illuminator on) |
||||
| S/N Ratio | > 56 dB | ||||
| Illumination Distance | 50 m (273 ft) (IR) | ||||
| Illuminator On/Off Control | Auto; Manual | ||||
| Illuminator Number | 2 (IR LED) | ||||
| Pan/Tilt/Rotation Range | Pan: 0°–360°
Tilt: –60°–0° Rotation: 0°–360° |
||||
| Lens | |||||
| Lens Type | Fixed-focal | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8mm; 3.6mm; 6mm | ||||
| Max. Aperture | 2.8mm:F1.6
3.6mm:F1.6 6mm:F1.6 |
||||
| Field of View | 2.8 mm: Horizontal 107° × Vertical 56° × Diagonal 127°
3.6 mm: Horizontal 88° × Vertical 44° × Diagonal 105° 6 mm: Horizontal 54° × Vertical 29° × Diagonal 63° |
||||
| Iris Type | Fixed | ||||
| Close Focus Distance | 2.8 mm: 0.7 m (2.5 ft)
3.6 mm: 1.3 m (4.25 ft) 6 mm: 2.8 m (9.15 ft) |
||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 43.9 m
(144 ft) |
17.5 m
(57.4 ft) |
8.8 m
(28.8 ft) |
4.4 m
(14.4 ft) |
|
| 3.6 mm | 58.9 m
(193 ft) |
23.6 m
(77.4 ft) |
11.8 m
(38.4 ft) |
5.9 m
(19.4 ft) |
|
| 6 mm | 88.3 m
(289.6 ft) |
35.3 m
(115.8 ft) |
17.7 m
(58 ft) |
8.8 m
(28.8 ft) |
|
| Professional, Intelligent | |||||
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||||
| SMD 3.0 | Less false alarm, longer detection distance | ||||
| IVS (Perimeter Protection) | Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human) | ||||
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||||
| Video | |||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) | ||||
| Smart Codec | Smart H.265+; Smart H.264+ | ||||
| AI Coding | AI Coding AI H.265; AI H.264 | ||||
| Video Frame Rate | Main stream: 1920 × 1080@(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps) Third stream:1920 × 1080@(1 fps–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
||||
| Stream Capability | 3 streams | ||||
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288) | ||||
| Bit Rate Control | CBR; VBR | ||||
| Video Bit Rate | H.264:512kbps -8192kbps
H.265:256kbps -7424kbps |
||||
| Day/Night | Auto (ICR)/Color/B/W | ||||
| BLC | Yes | ||||
| HLC | Yes | ||||
| WDR | 120 dB | ||||
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||
| Gain Control | Auto; manual | ||||
| Noise Reduction | 3D NR | ||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||
| Region of Interest (RoI) | Yes (4 areas) | ||||
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower) | ||||
| Mirror | Yes | ||||
| Privacy Masking | 8 areas | ||||
| Audio | |||||
| Audio Compression | PCM; G.711a; G.711Mu; G.726; G.723 | ||||
| Built-in MIC | Yes | ||||
| Alarm | |||||
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception | ||||
| Network | |||||
| Network | RJ-45 (10/100 Base-T) | ||||
| SDK and API | Yes | ||||
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade | ||||
| Network Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP | ||||
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone | ||||
| User/Host | 20 (Total bandwidth: 64 M) | ||||
| Storage | FTP;SFTP; Micro SD card (support max. 256 GB); NAS | ||||
| Browser | IE: IE8/9/11
Chrome Firefox |
||||
| Management Software | Smart PSS;DSS;DMSS | ||||
| Mobile Client | iOS;Android | ||||
| 4G | 4G_LTE: B1/B3/B5/B7/B8/B20/B28/B38/B40/B41
3G_WCDMA : B1/B5/B8 2G_GSM :B3/B5/B8 |
||||
| Certification | |||||
| Certifications | CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
||||
| Port | |||||
| RS-485 | 1 (baud rate range:1200 bps–115200 bps) | ||||
| Audio Input | 1 channel (RCA port) | ||||
| Audio Output | 1 channel (RCA port) | ||||
| Alarm Input | 2 channels in: 5 mA 3 V–5 VDC | ||||
| Alarm Output | 2 channels out: 300 mA 12 VDC | ||||
| Power | |||||
| Power Supply | 12 VDC | ||||
| Power Consumption | Basic: 3.3 W (12 VDC);
Max. (WDR+H.265+IR+4G): 5.9W (12 VDC) |
||||
| Environment | |||||
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) | ||||
| Operating Humidity | ≤ 95% | ||||
| Storage Temperature | –30 °C to +70 °C (–22 °F to +163 °F) | ||||
| Protection | IP67 | ||||
| Structure | |||||
| Casing | Metal + plastic | ||||
| Dimensions | 227.6 mm × 204.2mm × 87.2 mm (9.0" × 8.0" × 3.4") | ||||
| Net Weight | 945 g (2.1 lb) | ||||
| Gross Weight | 1440 g (3.1 lb) |
