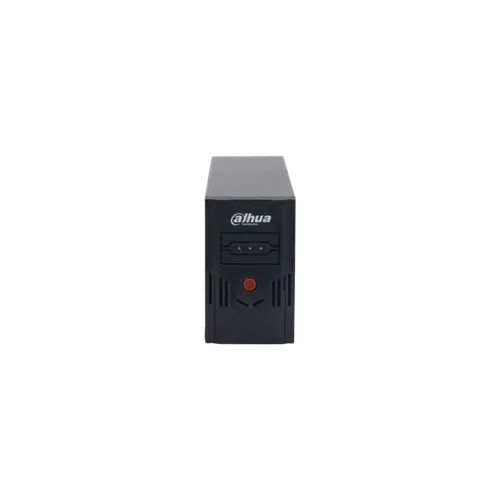

DAHUA DH-PFM350-360-A 600VA/360W LINE INTERACTIVE UPS(2y)

Capacity

Capacity

600 VA

Input

Input Voltage

150–275 VAC

Input Current

1.8 A

Rated Input Frequency

50/60 Hz

Power Factor

0.85

Output

Output Voltage

220 VAC ± 10%

Output Current

Mains supply: 1.6 A

Battery powered: 1.2 A

Output Power

Mains supply: 360 W

Battery powered: 280 W

Output Frequency

50/60 Hz

Switch Time

<10 ms

Output Wave

Pure sine wave (main electricity mode) Modified sine wave (battery mode)

Battery

Built-in Battery

Yes

Battery Type

Lead-acid battery

Qty.of Battery

12 V, 7 Ah × 1

Charging Current

≤2 A

Limited Charge Voltage

13.75 V

Charging Time

Charges up to 90% in 6 hours

Indicators

Status Indicator Light

Battery powered: The red light flashes once every 6 seconds

Mains supply: Green light is solid on

Charging while shutdown: The yellow light flashes once every 20 seconds

Charging while on: The green light is solid on and the yellow light flashes once every 20 seconds.

Alarm

Alarm Indicator

Battery powered: Alarms one sound every 6 seconds

Low power: Alarms one sound every 1 second

Overload: Alarms one sound every 0.5 seconds

Protection

Protection

Overload, heavy discharge and overcharge

Plugs and Sockets

Input Plug

European standard

Input Cable Length

1 m (39.37 ft)

Socket Standard

European standard

Number of Output Sockets

2

Structure

Product Dimensions

335 mm × 87 mm × 143 mm (13.19" × 3.43" × 5.63")

Packaging Dimensions

417 mm × 169 mm × 234 mm (16.42" × 6.65" × 9.21")

Casing Material

Steel and plastic

Appearance Color

Black

Net Weight

4.4 kg (9.70 lb)

Gross Weight

5 kg (11.02 lb)

Environment

Operating Temperature

0 °C–40 °C (32 °F to 104 °F)

Operating Humidity

0–90% RH

Storage Temperature

0 °C–40 °C (32 °F to 104 °F)

Storage Humidity

0–90% RH

Certifications

Certifications

CE
