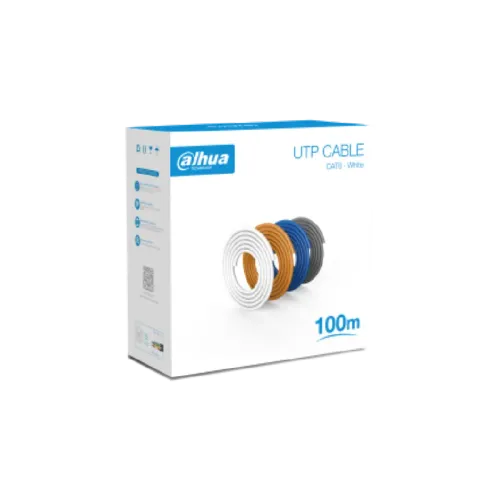

DAHUA DH-PFM920I-6UN-C-100 UTP CAT6 100M
NETWORKING
SenseLK
Rs 15,700
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Category | Specification |
|---|---|
| Model | DH-PFM920I-6UN-C-100 |
| Cable Type | U/UTP Category 6 (Unshielded Twisted Pair) |
| Length per Carton | 100 m (328 ft) |
| Conductor Material | Oxygen-free copper (purity 99.97 %) |
| Conductor Diameter | 0.53 mm ± 0.01 mm (≈ 24 AWG) |
| Insulation Material | High-Density Polyethylene (HDPE) |
| Insulation Diameter | 0.95 mm ± 0.10 mm |
| Pairing / Color Code | Four twisted pairs: Blue / White-Blue, Orange / White-Orange, Green / White-Green, Brown / White-Brown |
| Separator | Internal PE separator for improved crosstalk isolation |
| Rip Cord | Built-in polyester rip cord for easy cable stripping |
| Outer Sheath Material | Flame-retardant PVC |
| Sheath Minimum Thickness | ≥ 0.5 mm |
| Outer Cable Diameter | 6.0 mm ± 0.30 mm |
| Characteristic Impedance | 100 Ω ± 15 Ω (1–250 MHz) |
| Max. DC Resistance (per 100 m) | ≤ 8.7 Ω |
| Insulation Resistance | ≥ 5,000 MΩ·km |
| Max. Attenuation (at 250 MHz, 100 m) | ≤ 34.8 dB |
| NEXT (Near-End Crosstalk at 250 MHz, 100 m) | ≥ 39.3 dB |
| Return Loss (at 250 MHz, 100 m) | ≥ 17.3 dB |
| Tensile Strength | Sheath ≥ 13.5 MPa ; Insulation ≥ 16 MPa |
| Elongation at Break | Sheath ≥ 150 % ; Insulation ≥ 300 % |
| Minimum Bending Radius | > 8× outer diameter |
| Operating Temperature | −20 °C to +60 °C |
| Installation Temperature | 0 °C to +50 °C |
| Storage Temperature & Humidity | −10 °C to +40 °C ; Humidity < 60 % RH |
| Flame / Fire Compliance | IEC 60332-1-2 ; CPR Eca rated |
