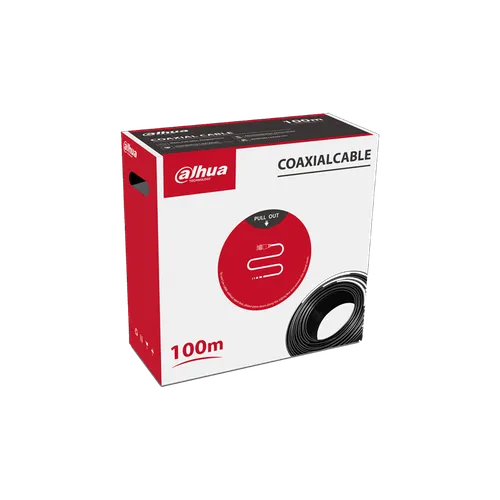

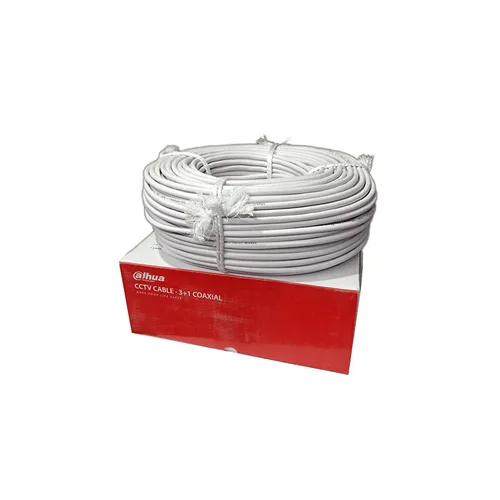

DAHUA DH-PFM930-59N-100 100M RG59 COAXIAL CABLE
SECURITY SOLUTIONS
SenseLK
Rs 11,700
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Section | Detail |
|---|---|
| Conductor | Material: Oxygen‑free copper (99.97%) |
| Diameter: 0.81 mm ± 0.1 mm | |
| Wire Gauge: 20 AWG | |
| Insulation | Material: FPE |
| Thickness: ≥ 1.4 mm | |
| Diameter: 3.7 mm ± 0.20 mm | |
| Color: White | |
| Inner Shield | Material: Aluminum foil |
| Specification: T ≥ 0.026 mm, width ~ 15 ± 1 mm | |
| Overlap rate: ≥ 25% | |
| Outer Shield | Material: Copper‑clad aluminum |
| Specification: 16 × 4 × 0.12 mm ± tolerances | |
| Shield coverage: ≥ 60% | |
| Sheath / Jacket | Material: PVC |
| Thickness: ≥ 0.95 mm | |
| Diameter: 6.1 mm ± 0.30 mm | |
| Color: Black, semi‑polished | |
| Electrical Properties | Max DC Resistance (inner): ≤ 33.9 Ω / km |
| Dielectric Strength: Withstands 2 kV DC for 1 min | |
| Sheath Strength: Withstands 3 kV | |
| Characteristic Impedance: 75 Ω ± 5 Ω | |
| Insulation Resistance: ≥ 5,000 MΩ·km | |
| Mechanical Properties | Elongation at Break (wire): ≥ 15% |
| Elongation at Break (sheath): ≥ 150% | |
| Environmental / Operating | Operating Temp: –20°C to +60°C |
| Storage Temp: –10°C to +40°C | |
| Low‑temperature bending: No cracks | |
| Thermal shock resistance: No cracks | |
| Physical / Packaging | Length: 100 m ± 1 m (≈ 328 ft) |
| Dimensions: 255 × 135 × 265 mm (L × W × H) | |
| Net Weight: ~3.6 kg ±0.4 kg |
Product Highlights
-
High purity 99.97% copper conductor ensures minimal signal loss
-
Double shielding (foil + copper-clad aluminum) protects against interference
-
Durable PVC outer sheath with flame retardant certification (CPR Eca)
-
Designed to meet RoHS 2.0 and REACH environmental standards
-
Strong electrical performance: 75 Ω impedance, high insulation, and withstand voltage capability
-
Mechanically robust: flexibility, elongation, and shock resistance
-
Suitable for long runs in CCTV, surveillance, transmission, and video systems
-
Precision-manufactured and packaged as 100 m roll for convenience
