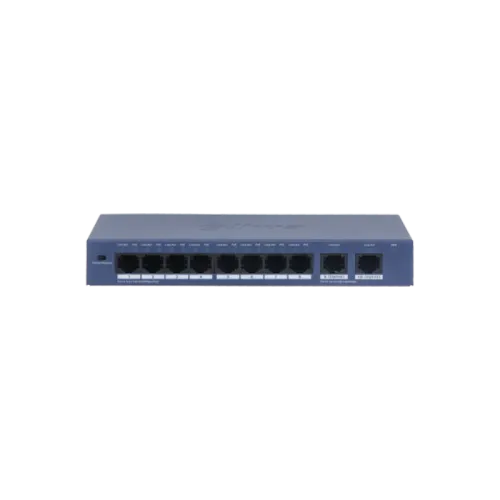

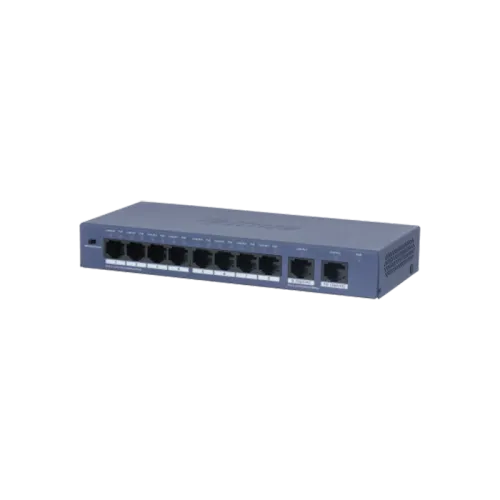

DAHUA DH-S3010-8GT-90 10-PORT UNMANAGED DESKTOP GIGABIT SWITCH WITH 8-PORT PoE(2y)
NETWORKING
SenseLK
Rs 18,500
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Category | Details |
|---|---|
| Brand | Dahua Technology |
| Model | DH-S3010-8GT-90 |
| Switch Type | Unmanaged Desktop Gigabit Switch with PoE |
| Total Ports | 10 × RJ-45 ports (8 PoE ports + 2 Gigabit uplink ports) |
| Port Configuration | Ports 1–8: 10/100/1000 Mbps PoE Ports 9–10: 10/100/1000 Mbps uplink |
| Network Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Transmission Method | Store-and-Forward |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 4K entries |
| Packet Buffer Memory | 1.5 Mbit |
| Flow Control | IEEE 802.3x flow control (Full Duplex), Backpressure (Half Duplex) |
| PoE Standards | IEEE 802.3af, IEEE 802.3at, Hi-PoE, IEEE 802.3bt |
| Total PoE Power Budget | 96 W |
| Per-Port PoE Output | Up to 30 W per port (PoE+), higher on designated Hi-PoE port depending on mode |
| PoE Transmission Distance | Supports long-range PoE mode for extended distance |
| PoE Pin Assignment | V+: 1,2,4,5 / V−: 3,6,7,8 |
| LED Indicators | Power, Link/Activity, PoE Status |
| Surge/ESD Protection | Air Discharge: 8kV, Contact Discharge: 6kV, Surge Protection for ports |
| Housing Material | Durable metal/desktop-style enclosure |
| Fanless Operation | Yes (silent operation) |
| Power Supply Input | DC 48V–57V external adapter |
| Maximum Power Consumption | Idle: ~3W, Full load: up to 96W (with PoE devices connected) |
| Operating Temperature | –10°C to +55°C |
| Storage Temperature | –20°C to +70°C |
| Operating Humidity | 5% – 95% (non-condensing) |
| Dimensions (W × D × H) | 190 × 100 × 30 mm |
| Weight | Approx. 0.50 kg |
| Mounting Options | Desktop placement |
| Warranty | 2 Years |
