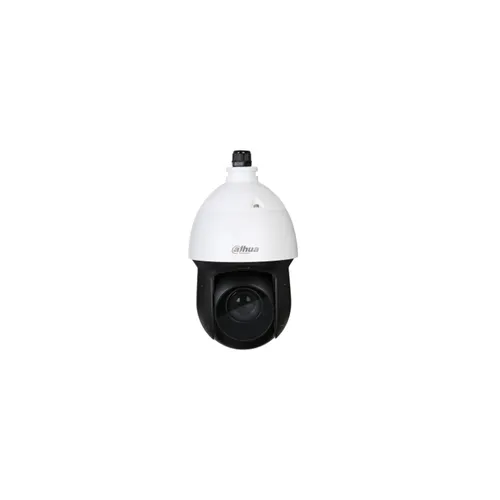

DAHUA DH-SD49225XA-HNR-S2 4.8mm to 120mm 2MP 25X STARLIGHT NETWORK PTZ CAMERA(2y)
SECURITY SOLUTIONS
SenseLK
Rs 170,170
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Camera | ||||
| Image Sensor | 1/2.8" CMOS | |||
| Pixel | 2 MP | |||
| Max. Resolution | 1920 (H) × 1080 (V) | |||
| ROM | 256 MB | |||
| RAM | 1 GB | |||
| Electronic Shutter Speed | 1/1 s–1/30000 s | |||
| Scanning System | Progressive | |||
| Min. Illumination | Color: 0.005 [email protected] B/W: 0.0005 [email protected] 0 lux (IR light on) |
|||
| Illumination Distance | 100 m (328.08 ft) | |||
| Illuminator On/Off Control | Zoom Prio; Manual; Smart IR; Off | |||
| Illuminator Number | 6 (IR light) | |||
| Lens | ||||
| Focal Length | 4.8 mm–120 mm | |||
| Max. Aperture | F1.6–F3.5 | |||
| Field of View | H: 62.8°–2.6°; V: 33.2°–1.7°; D: 67.3°–3.9° | |||
| Optical Zoom | 25x | |||
| Focus Control | Auto; Semi-Auto; Manual | |||
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) | |||
| Iris Control | Auto; Manual | |||
| DORI Distance | Detect | Observe | Recognize | Identify |
| 1655 m (5429.79 ft) | 654 m (2145.67 ft) | 331 m (1085.96 ft) | 165 m (541.34 ft) | |
| PTZ | ||||
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –15° to +90°, auto flip 180° |
|||
| Manual Control Speed | Pan: 0.1°–200°/sTilt: 0.1°–120°/s | |||
| Preset Speed | Pan: 240°/s; Tilt: 200°/s | |||
| Preset | 300 | |||
| Tour | 8 (up to 32 presets per tour) | |||
| Pattern | 5 | |||
| Scan | 5 | |||
| Speed Adjustment | Yes | |||
| Power-off Memory | Yes | |||
| Idle Motion | Preset; Pattern; Tour; Scan | |||
| Protocol | DH-SDPelco-P/D (auto recognition) | |||
| General Intelligence | ||||
| Event Trigger | Motion detection, video tampering, scene changing, network disconnection, IP address conflict, illegal access, and storage anomaly | |||
| IVS | Object abandoned; object missing | |||
| Artificial Intelligence | ||||
| Smart Capture | Support human, motor vehicle and non-motor vehicle image capture. | |||
| Perimeter Protection | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. | |||
| Face Detection | Yes | |||
| SMD PLUS | Yes | |||
| Video | ||||
| Compression | Smart H.265+; H.265; Smart H.264+; H.264B; H.264M; H.264H; MJPEG (Sub Stream) | |||
| Streaming Capability | 3 streams | |||
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) | |||
| Frame Rate | Main stream: 1080p/1.3 M/720p (1–50/60 fps) Sub stream 1: D1/CIF (1–25/30 fps) Sub stream 2: 1080 p/1.3M/720p/D1/CIF (1–25/30 fps)" |
|||
| Bit Rate Control | CBR; VBR | |||
| Bit Rate | Default resolution of the main stream: H.264: 32 Kbps–8192 Kbps H.265: 32 Kbps–8192 Kbps |
|||
| Day/Night | Auto (ICR); Color; B/W | |||
| BLC | Yes | |||
| WDR | 120 dB | |||
| HLC | Yes | |||
| White Balance | Auto; Indoor; Outdoor; Tracking; Manual; Sodium Lamp; Natural Light; Street Lamp | |||
| Gain Control | Auto; Manual | |||
| Noise Reduction | 2D; 3D | |||
| Motion Detection | Yes | |||
| Region of Interest (RoI) | Yes | |||
| Defog | Electronic | |||
| Flip | 180° | |||
| Privacy Masking | Up to 24 areas, and up to 8 areas in the same view | |||
| S/N Ratio | ≥ 55 dB | |||
| Audio | ||||
| Compression | G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1 | |||
| Network | ||||
| Ethernet | RJ-45 (10/100 Base-T) | |||
| Protocol | HTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; Qos; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP | |||
| Interoperability | ONVIF (Profile S&G&T); CGI | |||
| Streaming Method | Unicast; Multicast | |||
| User/Host | 20 (total bandwidth: 64 MB) | |||
| Storage | Imou Cloud; FTP; Micro SD card (max. 512 GB); NAS | |||
| Browser | IE7 and later versions; Chrome; Firefox; Safari | |||
| Management Software | Smart PSS; DSS; IVSS; Configtool; NVR; Smart Player; Imou | |||
| Mobile Phone | IOS; Android | |||
| Certification | ||||
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No. 60950-1 |
|||
| Port | ||||
| Audio Input | 1 | |||
| Audio Output | 1 | |||
| Alarm Input | 2 (on-off value input: 0–5 VDC) | |||
| Alarm Output | 1 | |||
| Alarm Linkage | Capture; preset; tour; pattern; recording; triggering on-off value output; audio; sending email | |||
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; encoder state detection; memory card state detection; memory space detection; power exception detection | |||
| Power | ||||
| Power Supply | 12 VDC/3A±10% PoE+ (802.3at) |
|||
| Power Consumption | Basic: 9W Max.: 23W |
|||
| Environment | ||||
| Operating Temperature | –40°C to +70°C (–40°F to +158°F) | |||
| Operating Humidity | ≤ 95% | |||
| Protection | IP66; TVS 6000V lightning proof; surge protection; voltage transient protection | |||
| Structure | ||||
| Casing | Aluminum alloy ADC12 | |||
| Dimensions | 160 mm × Φ295 mm (6.30" × Φ11.61") | |||
| Net Weight | 3 kg (6.61 lb) | |||
| Gross Weight | 4.2 kg (9.26 lb) |
