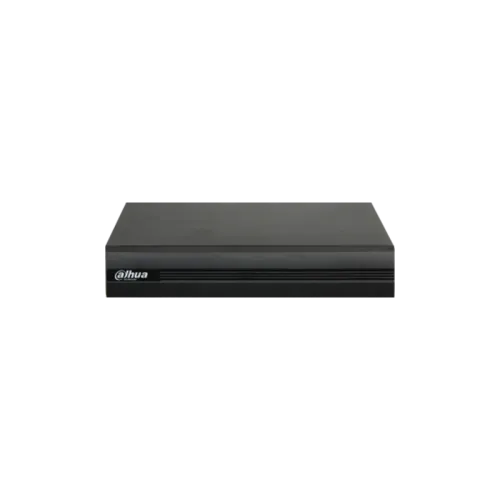

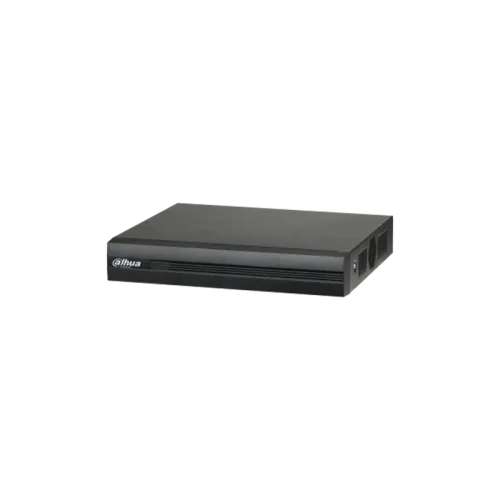

DAHUA DH-XVR1B16-I/T 16 CH PENTA-BRID 1080N/720P 1U WIZSENSE XVR(2y)
SECURITY SOLUTIONS
SenseLK
Rs 38,100
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Specification | Details |
|---|---|
| Product Name | Dahua DH-XVR1B16-I/T 16 CH Penta-brid XVR |
| Brand | Dahua |
| Channels | 16 analog channels + 2 IP channels (expandable to 18 IP channels) |
| Analog Camera Input | 16 BNC ports, auto-detect HDCVI, AHD, TVI, CVBS |
| Resolution Support | 1080N, 720P for analog; up to 18 IP channels |
| Encoding Capacity | Main stream: 1080N/720P up to 25/30 fps; Sub stream: CIF 1–7 fps |
| Video Compression | AI Coding, H.265+, H.265, H.264+, H.264 |
| Audio Input/Output | 1-channel RCA input, 16-channel coaxial input; 1 RCA output |
| Two-way Talk | Yes (shared with first channel) |
| Video Output | 1 HDMI, 1 VGA (resolutions: 1920×1080, 1280×1024, 1280×720) |
| Multi-screen Display | 1/4/8/9/16 screens |
| Storage | 1 SSD (256GB/512GB/1TB replaceable) |
| Backup Method | USB or network |
| Recording Modes | General, motion detection, alarm |
| Playback Modes | Instant, general, event, tag |
| Network Protocols | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
| Mobile Access | iOS, Android |
| Browser Support | Chrome, IE9+, Firefox |
| Alarm Support | Motion detection, video loss, tampering, disk errors, low space, offline, IP/MAC conflicts |
| Alarm Linkage | Record, snapshot, IPC output, controller, voice prompt, buzzer, log, preset, email |
| USB Ports | 2 × USB 2.0 |
| Network Port | 1 × 10/100 Mbps RJ-45 |
| Power Supply | 12 VDC, 2A |
| Power Consumption | <10 W (with SSD) |
| Dimensions (W×D×H) | 260 × 231.4 × 47.6 mm |
| Net Weight | 0.89 kg |
| Gross Weight | 1.42 kg |
| Operating Temp | –10 °C to +55 °C |
| Operating Humidity | 0%–90% RH |
| Installation | Desktop |
| Certifications | FCC, CE-LVD, CE-EMC |
Product Highlights
• 16-channel Penta-brid XVR with compact 1U design
• Supports 1080N/720P analog cameras and up to 18 IP cameras
• WizSense AI human & vehicle detection reduces false alarms
• Dual-stream recording with H.265+/H.265/H.264+/H.264
• HDMI & VGA outputs with multi-screen display options
• Flexible playback: instant, general, event, tag
• USB and network backup options
• Desktop installation with low power consumption
