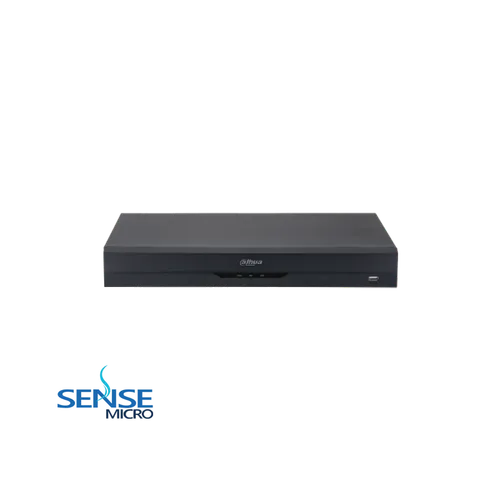

DAHUA DH-XVR5232AN-I3 32CH 5M-N/1080P XVR(2y)
SECURITY SOLUTIONS
SenseLK
Rs 142,100
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
- Model: Dahua DH-XVR5232AN-I3
- Channels: 32 analog camera inputs (BNC), up to 32 IP channels (16 default + 16 via IP extension)
- Resolution Support:
- HDCVI: 5MP@25/20/10/12.5fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30/50/60fps
- AHD/TVI: 5MP@20fps, 4MP@25/30fps, 1080p@25/30fps, 720p@25/30fps
- CVBS: PAL/NTSC
- IP: Up to 6MP per channel
- Bandwidth:
- IP inputs: 128 Mbps incoming, 128 Mbps recording, 128 Mbps outgoing
- AI features disabled when IP extension is enabled
- AI Capabilities:
- QuickPick 2.0: 2 channels for analog (enhances target retrieval)
- Face Recognition: 2 channels, up to 10 face databases (10,000 images)
- Perimeter Protection: 4 channels (10 IVS rules per channel in general mode, 2 in advanced)
- SMD Plus by Recorder: 16 channels (human/vehicle detection)
- SMD Plus by Camera: 32 channels
- AI Video Quality Analytics: 16 channels (detects brightness, color cast, defocus, etc.)
- Scene Changing/Irregular Black Block Masking: 1 channel each
- Compression:
- Video: AI Coding, Smart H.265+, H.265, Smart H.264+, H.264
- Audio: G.711a, G.711u, PCM
- Encoding Capacity:
- Encode Enhancement disabled: Main stream 5M-N@1-12fps, 4M-N/1080p@1-15fps, 1080N/720p/960H/D1/CIF@1-25/30fps; Sub stream D1/CIF@1-15fps
- Encode Enhancement enabled: 16-ch 5MP@1-12fps/5M-N@1-25fps, others 4M-N/1080p@1-15fps
- Storage:
- 2 SATA ports, up to 16TB per HDD
- Supports disk group management
- Video Outputs:
- 1 HDMI (3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720)
- 1 VGA (1920×1080, 1280×1024, 1280×720)
- Multi-screen display: 1/4/8/9/16/25/36 views
- Audio:
- Inputs: 1-channel RCA, 32-channel coaxial audio
- Output: 1-channel RCA
- Two-way talk: Yes (shared with first audio input)
- Network:
- 1 RJ45 port (10/100/1000 Mbps)
- Protocols: HTTP, HTTPS, TCP/IP, IPv4/IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P, etc.
- Supports ONVIF 23.12 (Profile T/S/G), CGI, SDK
- Alarm:
- Supports motion detection, video loss, tampering, HDCVI/network/PIR alarms
- Linkage: Record, snapshot, audio, buzzer, email, etc.
- Playback:
- Up to 16 channels
- Modes: Instant, general, event, tag, smart playback
- Compatibility: Supports third-party cameras (Panasonic, Sony, Axis, ONVIF, etc.)
- Power:
- Supply: 12 VDC, 5A
- Consumption: <15W (without HDD)
- Operating Conditions: -10°C to +55°C, 10%–90% humidity
- Additional Ports:
- 2 USB ports (1 USB 2.0 front, 1 USB 3.0 rear)
- 1 RS-485 port (for PTZ control)
- Dimensions: 375.0 mm × 289.6 mm × 53.0 mm (W × D × H)
- Certifications: CE-LVD, CE-EMC, FCC
- Warranty: 2 years
