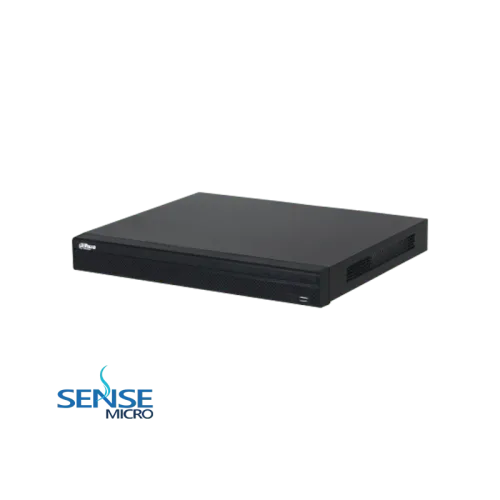

DAHUA DHI-NVR2216-16P-4KS3 16CH 1U 16PoE 2HDD LITE NVR(2y)
SECURITY SOLUTIONS
SenseLK
Rs 90,000
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Category | Specification |
|---|---|
| Model | DHI-NVR2216-16P-4KS3 |
| Product Type | 16 Channel 1U Network Video Recorder (Lite Series) |
| Video Input | 16 IP camera channels |
| PoE Ports | 16 × PoE ports (IEEE 802.3af/at, 10/100 Mbps) |
| Total PoE Power Budget | 130 W (Max 25.5 W per port) |
| HDD Bays | 2 × SATA interfaces, up to 20 TB each (Max 40 TB total) |
| Supported Camera Resolution | Up to 12 MP |
| Video Output | 1 × HDMI (up to 3840 × 2160), 1 × VGA (up to 1920 × 1080) |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264, MJPEG |
| Decoding Capability | AI Off: 1×12MP@30fps, 1×8MP@30fps, 2×5MP@30fps, 3×4MP@30fps, 6×1080p@30fps AI On: 1×8MP@30fps, 1×5MP@30fps, 2×4MP@30fps, 4×1080p@30fps |
| Network Bandwidth | Incoming: 144 Mbps, Recording: 144 Mbps, Outgoing: 72 Mbps (AI disabled) Incoming: 72 Mbps, Recording: 72 Mbps, Outgoing: 36 Mbps (AI enabled) |
| Multi-Screen Display | 1 / 4 / 8 / 9 / 16 divisions |
| Audio Input / Output | 1 × RCA input, 1 × RCA output |
| Alarm Inputs / Outputs | 4 inputs, 2 outputs |
| USB Ports | 2 × USB 2.0 (1 front, 1 rear) |
| Network Interface | 1 × RJ-45 (10/100/1000 Mbps) |
| AI Functions (By Recorder) | SMD Plus (Smart Motion Detection) for up to 4 channels, filters human and vehicle targets |
| AI Functions (By Camera) | Supports perimeter protection and SMD Plus for up to 4 channels |
| Recording Modes | Manual, Schedule, Motion Detection, Alarm, Intelligent |
| Playback Modes | 1/4/8/16-channel synchronous playback |
| Backup Methods | USB device, Network backup |
| Supported Protocols | ONVIF (Profile S/G/T), CGI, SDK |
| Operating System | Embedded Linux |
| Remote Access | DMSS mobile app (iOS/Android), SmartPSS, DSS Express, Web browser |
| Max User Access | Up to 128 users |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption (NVR Only) | < 10 W (without HDD, PoE load excluded) |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +60°C |
| Operating Humidity | 10%–93% RH (non-condensing) |
| Construction | Metal chassis, 1U rack/desktop mountable |
| Dimensions (W × D × H) | 375 × 328 × 53 mm |
| Net Weight | Approx. 2.68 kg |
| Certifications | CE, FCC, EN 55032, EN 55035, IEC 62368-1 |
| Warranty | 2 Years (Manufacturer Warranty) |
