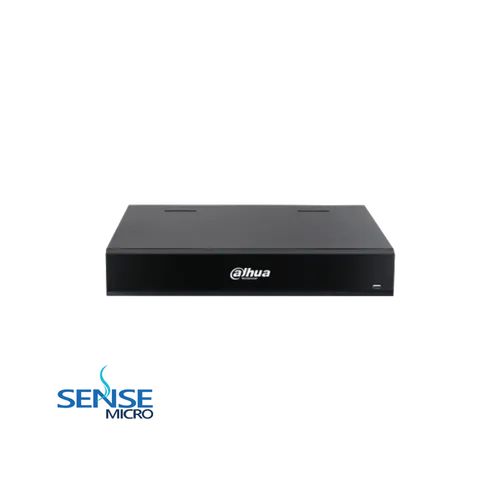

DAHUA DHI-XVR7416L-4KL 16CH PENTA BRID 4K(2y)
SenseLK
Rs 130,600
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Specification | Details |
|---|---|
| Brand | Dahua |
| Model | DHI-XVR7416L-4KL |
| Type | 16-channel 1.5U Penta-brid 4K Digital Video Recorder |
| Supported Video Inputs | HDCVI, AHD, TVI, CVBS, and IP |
| Channels | 16 analog channels (BNC), expandable to 32 IP channels |
| Resolution Support | Up to 4K (8MP) for HDCVI, 12MP for IP cameras |
| Video Frame Rate | 4K@25/30fps, 6MP@20fps, 1080p@30fps, 720p@60fps |
| AI Capabilities | 6-ch QuickPick 2.0, 6-ch Face Recognition, 12-ch Perimeter Protection, 16-ch SMD Plus |
| Face Recognition | 6 channels, supports 10 databases and up to 20,000 face images |
| Perimeter Protection | 12 channels, with up to 10 IVS rules per channel |
| SMD Plus (Smart Motion Detection) | 16 channels via DVR / 32 channels via camera |
| AI Video Analytics | Brightness, color cast, defocus, and scene change detection |
| Compression Formats | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264 |
| Audio | 4 BNC inputs + 16 coaxial audio, 1 BNC output, two-way talk |
| Network | 1 x RJ-45 (10/100/1000 Mbps), ONVIF 23.12, HTTP, HTTPS, RTSP, IPv4/IPv6, P2P |
| Storage | 4 SATA ports (up to 16TB per HDD), 1 eSATA port |
| Video Outputs | 2 HDMI (4K & 1080p), 1 VGA, 1 TV output |
| Multi-screen Display | 1/4/8/9/16 (up to 36 with IP extension) |
| Playback Channels | Up to 16 |
| Alarm I/O | 16 inputs, 6 outputs |
| USB Ports | 1 front USB 2.0, 2 rear USB 3.0 |
| RS Ports | 1 RS-232, 1 RS-485 |
| Power Supply | 100–240V AC, 50/60 Hz |
| Power Consumption | <30W (without HDD) |
| Operating Conditions | -10°C to +55°C, 10%–90% humidity |
| Dimensions (W × D × H) | 440 × 415.7 × 76 mm |
| Certifications | CE-LVD, CE-EMC, FCC |
| Warranty | 2 Years |
Product Highlights
-
4K Ultra HD Video Support: Supports up to 8MP resolution on HDCVI and 12MP on IP cameras for crystal-clear footage.
-
Smart AI Capabilities: Includes advanced functions such as face recognition, perimeter protection, and human/vehicle classification with SMD Plus.
-
High Bandwidth Performance: 128 Mbps IP input ensures smooth streaming and recording for multiple high-resolution cameras.
-
Flexible Video Format Compatibility: Works seamlessly with HDCVI, AHD, TVI, CVBS, and IP technologies.
-
Massive Storage Expansion: Accommodates up to 4 SATA HDDs with a total capacity of up to 64TB.
-
Multiple Video Outputs: Dual HDMI, VGA, and TV outputs support diverse monitoring setups.
-
Advanced Video Analytics: Real-time detection of focus loss, brightness, color deviation, and abnormal scene changes.
