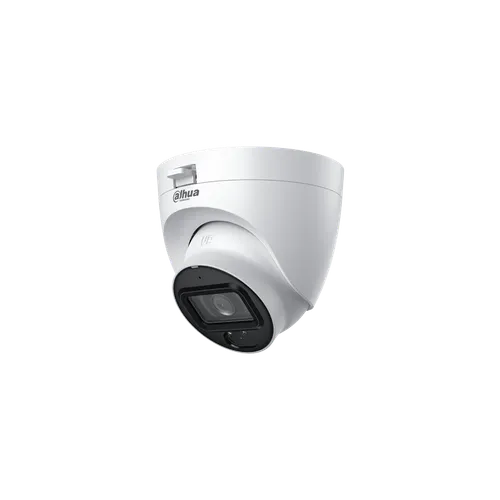

DAHUA HAC-HDW1509TLQP-A-LED-0280B-S2 5MP HDCVI CAMERA(2y)
SECURITY SOLUTIONS
SenseLK
Rs 17,500
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Category | Specification |
|---|---|
| Model | HAC‑HDW1509TLQP‑A‑LED‑0280B‑S2 |
| Series / Branding | Dahua “Lite” Series, 5 MP Full‑Colour HDCVI Eyeball Camera |
| Image Sensor | 5 MP CMOS (progressive scan) |
| Maximum Resolution | Up to 2880 × 1620 (5MP) in 16:9 format; supports 4MP, 1080p and 960H formats |
| Frame Rate | Up to 25 fps at 5MP (HDCVI) |
| Minimum Illumination | 0.001 lux @ F1.0 (colour); 0 lux with built‑in warm white LED active |
| Signal‑to‑Noise Ratio (S/N) | > 65 dB |
| Lens / Focal Length Options | Fixed‑focal lens; 2.8 mm (standard) or 3.6 mm (optional) |
| Maximum Aperture | F1.0 |
| Field of View (approx.) | 2.8 mm: H ~112°, V ~57°, Diagonal ~132° 3.6 mm: H ~88°, V ~46°, Diagonal ~104° |
| Close Focus Distance | 2.8 mm: approx. 1.6 m 3.6 mm: approx. 2.3 m |
| DORI Distances | For 2.8 mm: Detect ~67.4 m; Observe ~27.0 m; Recognise ~13.5 m; Identify ~6.7 m For 3.6 mm: Detect ~80 m; Observe ~32.0 m; Recognise ~16.0 m; Identify ~8.0 m |
| Illumination / Night Vision | Smart Light (built‑in warm white LED) with illumination up to ~20 m; full‑colour imaging in low light conditions |
| Video Output / Format Switchable | 4‑in‑1 output: HDCVI / TVI / AHD / CVBS via single BNC port |
| Wide Dynamic Range & Image Enhancements | True WDR 120 dB, 3D Noise Reduction (3D‑NR), BLC, HLC / HLC‑Pro, Mirror, Privacy Masking (8 zones) |
| Audio Interface | Built‑in microphone (‑A version) |
| Power Supply | 12 V DC ± 30% |
| Power Consumption | Max approx. 4.4 W (under 12 V DC with warm LED on) |
| Operating Conditions | Temperature: –40 °C to +55 °C Humidity: ≤ 95% (non‑condensing) |
| Ingress Protection / Housing | Rated IP67 (dust‑proof & water‑resistant) Housing: metal inner core + plastic cover + plastic pedestal |
| Dimensions & Weight | Ø 97.1 mm × 91.4 mm (≈3.82″ × 3.60″) Net weight: approx. 0.24 kg |
| Warranty | 2‑Year Warranty (subject to region / seller terms) |
| Additional Features | Full‑colour 24/7 imaging even in low lightSmart Light technology (warm‑white LED) to maintain colour detail at night3‑axis mount (Pan 0°–360° / Tilt 0°–78° / Rotate 0°–360°) for flexible installation |
