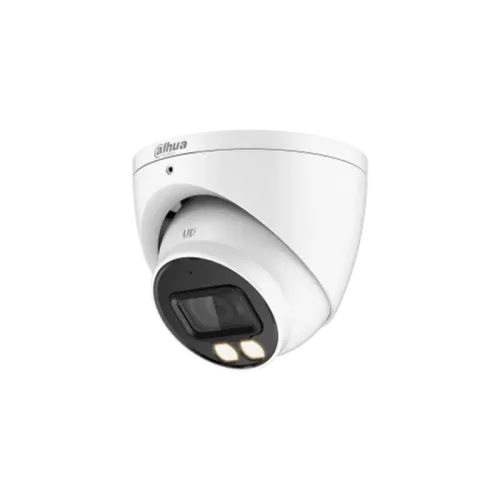

DAHUA HAC-HDW1509TP-IL-A-0280B 5MP DUAL LIGHT 40M IR CAMERA(2y)
SenseLK
Rs 16,000
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Category | Specification |
|---|---|
| Product Name | Dahua HAC-HDW1509TP-IL-A-0280B |
| Camera Type | HD Analog Dual Light CCTV Camera |
| Image Sensor | 5MP CMOS |
| Maximum Resolution | 2880 × 1620 (5MP) |
| Scanning System | Progressive Scan |
| Electronic Shutter | PAL: 1/3s–1/100000s, NTSC: 1/4s–1/100000s |
| Minimum Illumination | 0.001 lux (Color), 0.0001 lux (B/W), 0 lux (Light On) |
| Signal-to-Noise Ratio | >65 dB |
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length Options | 2.8mm / 3.6mm |
| Maximum Aperture | F1.0 |
| Field of View | 2.8mm: 111° (H), 3.6mm: 89° (H) |
| Close Focus Distance | 1.5m (2.8mm), 2.2m (3.6mm) |
| Illumination Distance | IR: 40m, Warm Light: 40m |
| Illumination Modes | Smart IR & Warm Light, IR Only, Warm Light Only |
| Illuminators | 2 IR LEDs, 2 Warm Light LEDs |
| Day/Night Mode | Auto (ICR) / Color / B&W |
| Wide Dynamic Range | True WDR 120dB |
| Backlight Compensation | BLC, HLC, HLC-Pro |
| Noise Reduction | 3D Noise Reduction |
| Digital Zoom | 4× |
| Defog | Electronic Defog |
| Privacy Masking | Up to 8 selectable areas |
| Video Frame Rate | 5MP@25fps, 4MP@30fps, 1080p@30fps |
| Video Output | CVI / TVI / AHD / CVBS via single BNC |
| Audio | Built-in Microphone (1 Channel) |
| Power Supply | 12V DC ±30% |
| Power Consumption | Max 5.7W |
| Operating Temperature | –40°C to +60°C |
| Operating Humidity | <95% RH (Non-condensing) |
| Protection Rating | IP67 Weatherproof |
| Casing Material | Metal |
| Mounting Options | Wall, Ceiling, Vertical Pole |
| Dimensions | Ø106.0 mm × 93.6 mm |
| Net Weight | 0.49 kg |
| Warranty | 2 Years |
Product Highlights
-
Ultra-clear 5MP resolution delivers sharp and detailed video footage
-
Dual light technology enables full-color night vision or infrared monitoring
-
Smart illumination control adjusts lighting automatically to reduce light pollution
-
Built-in microphone provides audio evidence alongside video
-
True 120dB WDR ensures balanced images in bright and dark areas
-
Multi-format compatibility works with most HD analog DVRs
-
IP67 metal housing ensures durability in harsh outdoor conditions
-
Ideal for homes, shops, offices, warehouses, and outdoor premises
