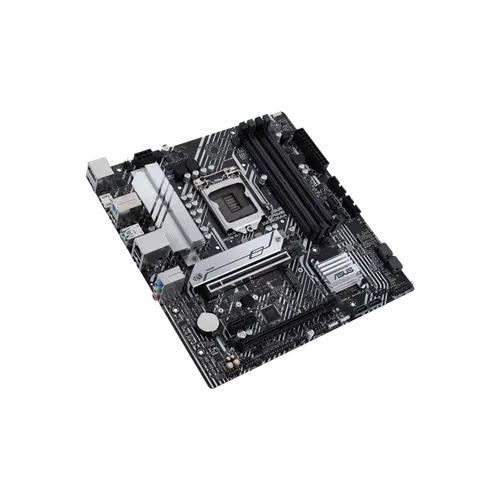

DESKTOP MOTHERBOARD - ASUS PRIME B560M-K (3y)
COMPUTER AND ACCESSORIES
SenseLK
Rs 50,800
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description

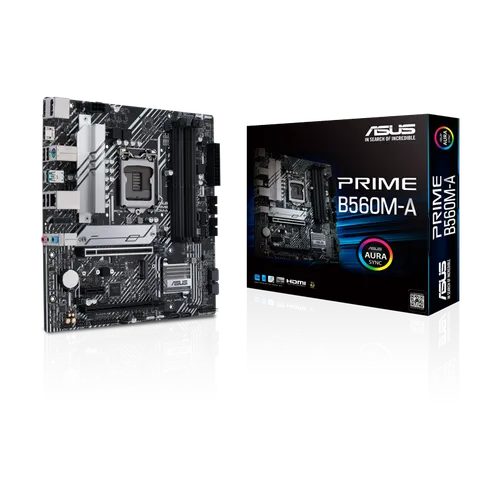

DESKTOP MOTHERBOARD - ASUS PRIME B560M-A
| Category | Details |
|---|---|
| Model Name | ASUS PRIME B560M-A |
| Warranty | 3-Year Standard Warranty |
| Form Factor | Micro-ATX (24.4 cm x 23.4 cm) |
| CPU Socket | LGA 1200 |
| Supported CPUs | Intel 10th and 11th Gen Core™ i9/i7/i5/i3, Pentium Gold, Celeron |
| Chipset | Intel® B560 |
| Memory Support | 4 x DDR4 DIMM slots, Dual-Channel Architecture, Up to 128 GB Total |
| Memory Speeds (OC) | 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600, 4700, 4800 MT/s |
| Graphics Interface | Integrated Graphics Processor (Depends on CPU) |
| Audio Codec | Realtek® ALC887/ALC897, 7.1-Channel High Definition Audio |
| SATA Ports | 6 x SATA 6Gb/s Ports |
| M.2 Slots | 2 x M.2 Slots |
| M.2_1 Slot | Type 2242/2260/2280 (PCIe 4.0 x4, Only with 11th Gen CPUs) |
| M.2_2 Slot | Type 2242/2260/2280 (PCIe 3.0 x4 & SATA Modes) |
| PCIe Slots | 1 x PCIe 4.0/3.0 x16 Slot (x16 Mode) |
| Additional PCIe Slots | 1 x PCIe 3.0 x16 Slot (x4 Mode), 1 x PCIe 3.0 x1 Slot |
| USB Ports (Rear I/O) | 1 x USB 3.2 Gen 2 Type-C®, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
| Video Outputs | 1 x DisplayPort, 2 x HDMI |
| Ethernet | 1 x Intel® I219-V Gigabit Ethernet |
| Wi-Fi | V-M.2 Slot (Key E) for Wi-Fi Module |
| Audio Jacks | 3 x 3.5mm Audio Jacks |
| PS/2 Combo Port | 1 x PS/2 Combo Port |
| Expansion Slots | 1 x PCIe 4.0/3.0 x16 Slot, 1 x PCIe 3.0 x16 Slot (x4 Mode), 1 x PCIe 3.0 x1 Slot |
| Cooling Features | VRM Heatsink, Flexible M.2 Heatsink, PCH Heatsink, Hybrid Fan Headers, Fan Xpert 2+ |
| RGB Lighting | Aura Sync RGB Header, Addressable Gen 2 Header |
| Power Connectors | 1 x 24-pin ATX Power Connector, 1 x 8-pin ATX 12V Power Connector |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| Operating System Support | Windows 10 64-bit, Windows 11 64-bit |
| Dimensions | 24.4 cm x 23.4 cm |
| Package Contents | Motherboard, I/O Shield, SATA Cables, Wi-Fi Antenna (Optional), User Manual |
