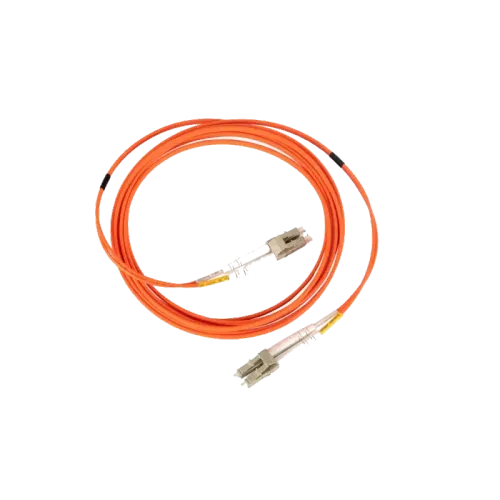

FIBER CABLE (LS2015122105) 20M LC/PC-LC/PC OM2 50/125 20M
SenseLK
Rs 4,700
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
Product Specifications
| Specification | Description |
|---|---|
| Product Name | Fiber Optic Patch Cable – LC/PC to LC/PC, Multimode OM2, 50/125µm, 20 Meter |
| Model Number | LS2015122105 |
| Connector Type | LC/PC to LC/PC (Lucent Connector, Physical Contact polish) |
| Polish Type | PC (Physical Contact) |
| Fiber Type | Multimode (OM2) |
| Transmission Mode | Simplex (1 fiber core – one-way transmission) |
| Core/Cladding Diameter | 50/125 µm (Micron) |
| Cable Length | 20 Meters (65.6 feet) |
| Jacket Type | LSZH (Low Smoke Zero Halogen) – flame retardant and non-toxic in combustion |
| Jacket Color | Orange (Standard color for OM2 multimode fibers) |
| Outer Diameter | 2.0 mm or 3.0 mm (depending on production batch) |
| Wavelength Compatibility | 850 nm and 1300 nm |
| Max Transmission Distance | Up to 550 meters @ 1 Gbps (850 nm), 150 meters @ 10 Gbps |
| Insertion Loss (Typical) | ≤ 0.3 dB |
| Return Loss (Typical) | ≥ 30 dB (for multimode PC connections) |
| Fiber Compliance | ISO/IEC 11801 OM2, TIA/EIA-568-C.3 |
| Connector Standards | IEC 61754-20 (LC standard) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Bend Radius | ≥ 30 mm (Installation), ≥ 10 mm (Static) |
| Mating Durability | ≥ 1000 mating cycles |
| Tensile Strength | >100N short-term, >50N long-term |
| Environmental Rating | Indoor use – suitable for data centers, office networks, and structured cabling |
| Testing & Certification | 100% factory tested for insertion loss and return loss |
| RoHS Compliance | Yes |
| Packaging | Individually packaged with anti-static sleeve and label |
Product Highlights
-
LC to LC Multimode OM2 Cable: Designed for fast and secure duplex connections across short-to-medium distances.
-
Factory-Terminated and Ready-to-Install: Delivers consistent optical performance and minimal setup time.
-
OM2 50/125 µm Fiber Core: Ideal for 1G and 10G Ethernet in LAN environments, especially over multimode infrastructure.
-
High-Performance Connectors: LC/PC polish ensures stable, low-loss mating with standard LC ports and modules.
-
Safety-Compliant LSZH Jacket: Provides reduced smoke and toxicity—ideal for enclosed or high-occupancy areas.
-
Reliable Performance Metrics: Insertion loss ≤ 0.3 dB and return loss ≥ 30 dB guarantee clear signal transmission.
-
Orange Jacket for OM2 Identification: Makes network maintenance and management easier through clear color coding.
-
Complies with International Standards: Built to meet or exceed ISO, IEC, TIA, and RoHS requirements for networking fiber.
