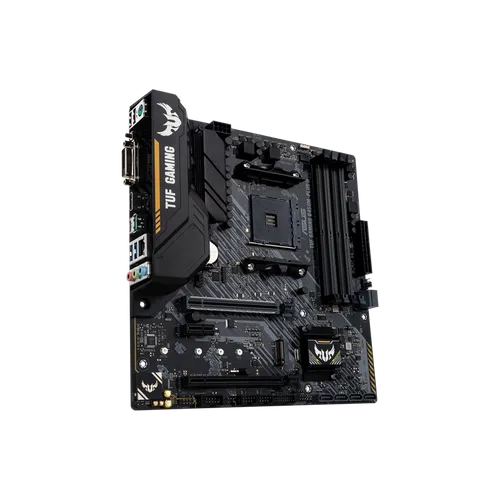

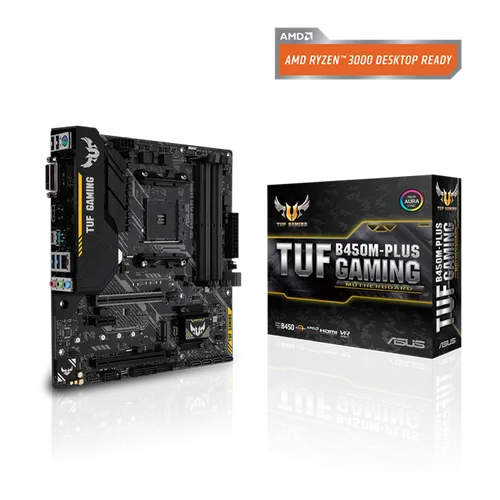

GAMING MOTHERBOARD - ASUS TUF B450M-PLUS (3y)
COMPUTER AND ACCESSORIES
SenseLK
Rs 31,500
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Category | Details |
|---|---|
| Model | ASUS TUF B450M-PLUS GAMING |
| Warranty | 3 Years |
| CPU Support | AMD AM4 Socket for Ryzen™ 5000 Series / 4000G Series / 3rd / 2nd / 1st Gen Ryzen™ / Ryzen™ with Radeon™ Vega Graphics / Athlon™ with Radeon™ Vega Graphics |
| Chipset | AMD B450 |
| Memory | 4× DIMM DDR4 up to 128GB, supports 4400(OC)/3466(OC)/3200(OC)/3000(OC)/2800/2666/2400/2133 MHz; Dual-channel; ECC support varies by CPU |
| Integrated Graphics Support | HDMI 2.0b up to 4096×2160@60Hz; DVI-D up to 1920×1200@60Hz (supported by APUs only) |
| Multi-GPU Support | AMD CrossFireX™ |
| Expansion Slots | 1× PCIe 3.0/2.0 x16 (x16 or x8 or x4 mode depending on CPU), 1× PCIe 2.0 x16, 1× PCIe 2.0 x1 |
| Storage | 1× M.2 M-Key 2242/2260/2280/22110 (PCIe 3.0 x4 & SATA mode), 6× SATA 6Gb/s ports (shared bandwidth with M.2) |
| RAID Support | RAID 0 / 1 / 10 |
| LAN | Realtek® RTL8111H with TUF LANGuard |
| Audio | Realtek ALC887/897 8-Channel HD Audio, DTS Custom, audio shielding, dedicated PCB layers, premium capacitors |
| USB Ports (Rear I/O) | 1× USB 3.1 Gen 2 Type-A, 1× USB 3.1 Gen 1 Type-C, 2× USB 3.1 Gen 1, 2× USB 2.0 |
| USB (Internal Headers) | 1× USB 3.1 Gen 1 (2 ports), 2× USB 2.0 (4 ports) |
| Back I/O Ports | PS/2 combo, HDMI, DVI-D, LAN (RJ45), 1× USB 3.1 Gen 2, 1× USB 3.1 Gen 1 Type-C, 2× USB 3.1 Gen 1, 2× USB 2.0, 3× audio jacks |
| Internal I/O | CPU fan header, 2× chassis fan headers, RGB header, 6× SATA, front panel audio, 24-pin EATX, 8-pin ATX 12V, M.2 slot, COM header, Clear CMOS |
| TUF Protection Features | SafeSlot, ESD Guards, Overvoltage protection, Stainless-steel back I/O, DIGI+ VRM |
| Cooling Features | Fan Xpert 2+, MOS heatsink, fanless design |
| Aura Sync RGB | Aura lighting control + RGB strip headers |
| BIOS | 128Mb UEFI AMI BIOS, EZ Flash 3, CrashFree BIOS 3, Q-Fan Control, AURA On/Off |
| Accessories | User manual, I/O shield, 2× SATA cables, M.2 screw, DVD, TUF sticker, Certification card |
| Operating System | Windows 10 64-bit, Windows 7 64-bit (selected CPUs only) |
| Form Factor | mATX 24.4 cm × 24.4 cm |
