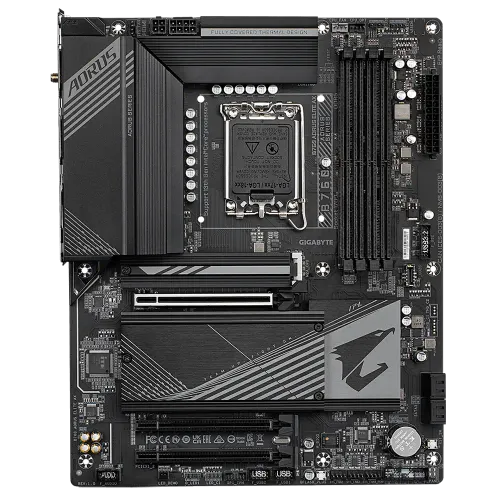

GIGABYTE B760 AORUS Elite AX Motherboard (Wifi)
Price in Sri Lanka

Gigabyte B760 AORUS ELITE AX Specification –

1. LGA1700 socket: Support for the 13th and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors*
2. L3 cache varies with CPU

* Please refer to “CPU Support List” for more information.

1. Intel^® B760 Express Chipset

1. Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules

(Please refer “Memory Support List” for more information.)

1. 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
   * Support for HDMI 2.0 version and HDCP 2.3.
2. 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
   * Support for DisplayPort 1.2 version and HDCP 2.3

(Graphics specifications may vary depending on CPU support.)

1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
4. Support for S/PDIF Out

1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
2. BLUETOOTH 5.3
3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
   * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
2. 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

1. 2 x USB Type-C^® ports, with USB 3.2 Gen 2 support (1 port on the back panel, 1 port available through the internal USB header)
2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
3. 2 x USB 3.2 Gen 1 ports available through the internal USB header

Chipset+USB 3.2 Gen 1 Hub:

1. 4 x USB 3.2 Gen 1 ports on the back panel

Chipset+2 USB 2.0 Hubs:

1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x CPU fan/water cooling pump header
6. 3 x system fan headers
7. 1 x system fan/water cooling pump header
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 3 x M.2 Socket 3 connectors
11. 4 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
18. 1 x reset button
19. 1 x Q-Flash Plus button
20. 1 x reset jumper
21. 1 x Clear CMOS jumper

1. 1 x USB Type-C^® port, with USB 3.2 Gen 2 support
2. 1 x USB 3.2 Gen 2 Type-A port (red)
3. 4 x USB 3.2 Gen 1 ports
4. 4 x USB 2.0/1.1 ports
5. 2 x SMA antenna connectors (2T2R)
6. 1 x HDMI port
7. 1 x DisplayPort
8. 1 x RJ-45 port
9. 1 x optical S/PDIF Out connector
10. 2 x audio jacks

1. iTE^® I/O Controller Chip

1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Water cooling flow rate detection
5. Fan fail warning
6. Fan speed control
   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for GIGABYTE Control Center (GCC)
   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus

1. Norton^® Internet Security (OEM version)
2. LAN bandwidth management software

1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit

1. ATX Form Factor; 30.5cm x 24.4cm
