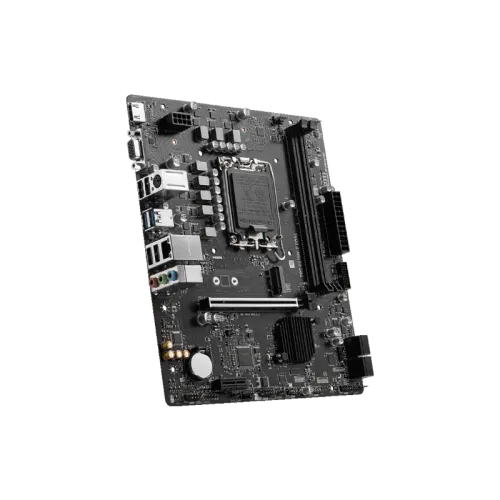

MSI PRO H610M-E DDR4 MOTHERBOARD(3y)
COMPUTER AND ACCESSORIES
SenseLK
Rs 34,150
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Specification | Details |
|---|---|
| Chipset | Intel® H610 |
| Form Factor | Micro-ATX (9.3" x 7.9") |
| Memory Slots | 2x DDR4, up to 64GB, Dual-Channel, non-ECC un-buffered |
| Memory Speed Support | 2133 / 2666 / 3200 MHz (JEDEC & POR) |
| Expansion Slots | 1x PCIe x16 (PCIe 4.0), 1x PCIe x1 (PCIe 3.0) |
| M.2 Slot | 1x Key M, PCIe 3.0 x4, supports 2242/2260/2280 devices |
| SATA Ports | 4x SATA 6Gb/s |
| Integrated Graphics Ports | 1x HDMI 1.4 (up to 4K 30Hz), 1x VGA (up to 2048x1536 @50Hz) |
| Audio | Realtek® ALC897 Codec, 7.1-Channel HD Audio |
| LAN | Realtek® RTL8111H 1Gbps LAN Controller |
| USB Ports (Internal) | 1x USB 3.2 Gen1 connector (supports 2 ports), 2x USB 2.0 Type-A connectors (supports 4 ports) |

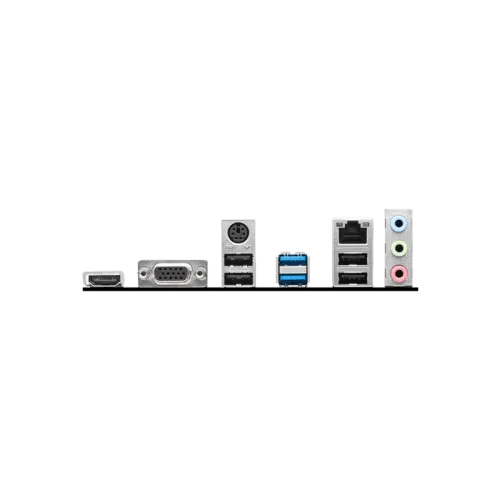

| USB Ports (Back Panel) | 1x USB 3.2 Gen1 Type-A, 2x USB 2.0 |
| Power Connectors | 1x 24-pin ATX, 1x 8-pin +12V |
| Fan Connectors | 1x CPU fan (4-pin), 2x System fan (4-pin) |
| System Connectors | Front panel audio, 2x System panel, Chassis Intrusion, TPM, Serial port |
| LED Features | 1x 4-pin RGB LED connector, 4x EZ Debug LED |
| Jumpers | 1x Clear CMOS |
| Warranty | 3-Year Limited Warranty |
Product Highlights
-
High compatibility for Intel 12th and 13th Gen processors.
-
Fast storage and expandability with M.2 PCIe slot and SATA ports.
-
Enhanced onboard audio and LAN for home or office builds.
-
Easy troubleshooting with EZ Debug LEDs and RGB header for customization.
