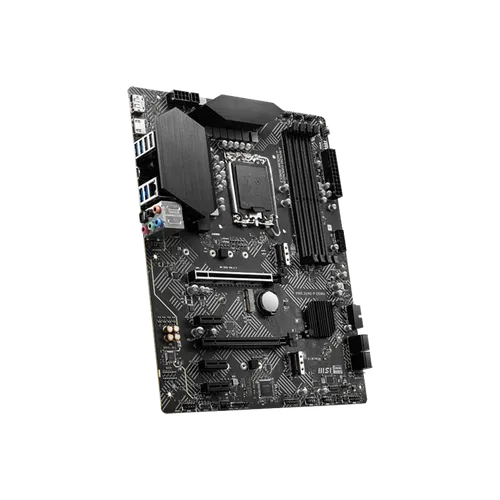

MSI PRO Z690-P DDR4 GAMING MOTHERBOARD(3y)

Name: MSI PRO Z690-P DDR4 GAMING MOTHERBOARD(3y)
Price: 59000 LKR
Availability: InStock

GAMING

SenseLK

Rs 59,000

In Stock

0706100100

+94706100100

https://www.sense.lk...

Available hours

Closed now

View more on,

Description

Model
Brand	MSI
Model	PRO Z690-P DDR4

Supported CPU
CPU Socket Type	LGA 1700 * Dedicated LGA1700 mounting bracket is required.
CPU Type	Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors

Chipsets
Chipset	Intel Z690

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4×288pin
Memory Standard	DDR4 3200 / 2666 / 2133 (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5000+ 1DPC 2R Max speed up to 4600+ 2DPC 1R Max speed up to 4400+ 2DPC 2R Max speed up to 4000+
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16
PCI Express 3.0 x16	1 x PCI Express 3.0 x16 * PCI_E3 Support PCIe 3.0 x4.
PCI Express x1	3 x PCI Express 3.0 x1
Other Slots	1 x M.2 slot with E key for Intel Wireless-AX CNVi and PCIe WiFi module

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	2 x M.2 slots (Key M): M2_1 slot (From CPU): Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 chipset): Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Supports Intel Optane Memory
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek RTL8125BG
Max LAN Speed	10/100/1000/2500Mbps

Rear Panel Ports
Back I/O Ports	1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) 1 x Optical S/PDIF Out 5 x Audio Jacks 1 x USB 3.2 Gen 2x2 Type-C 4 x USB 3.2 Gen 1 Type-A 2 x USB 2.0/1.1

Internal I/O Connectors
Onboard USB	2 x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 4 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Clear CMOS jumper 1 x TBT connector (Supports RTD3) 1 x 4-pin RGB LED connector 1 x 3-pin RAINBOW LED connector 4 x EZ Debug LED

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector
