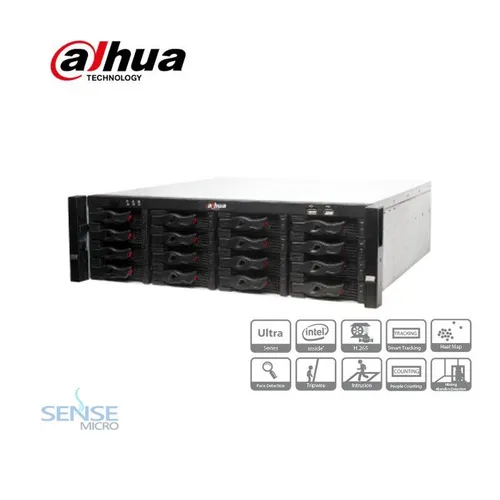

NVR - DAHUA DHI-NVR616-128-4KS2 128CH SUPER 4K
SECURITY SOLUTIONS
SenseLK
Rs 530,700
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Main Processor | Intel Quad-core Processor |
| Operating System | Embedded LINUX |
| Audio and Video | |
| IP Camera Input | 128 Channel |
| Two-way Talk | 1 Channel Audio Input, 1 Channel Audio Output, RCA |
| Display | |
| Interface | 2 HDMI (up to 3840 x 2160 , Different Source),
1 VGA |
| Resolution | 3840 × 2160 , 1920 × 1080 , 1280 × 1024,
1280 × 720 , 1024 × 768 |
| Multi-screen Display | 1st Screen: 1/4/8/9/16/25/36
2nd Screen: 1/4/8/9/16 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording | |
| Compression | H.265/H.264/MJPEG |
| Resolution | 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P etc. |
| Record Rate | 384Mbps |
| Bit Rate | 16Kbps ~ 20Mbps Per Channel |
| Record Mode | Manual, Schedule (Regular, MD (Motion Detection), Alarm, IVS), Holiday, Stop |
| Record Interval | 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec |
| Video Detection and Alarm | |
| Trigger Events | Recording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips |
| Video Detection | Motion Detection, MD Zones: 396 (22 × 18), Video Loss and Tampering |
| Alarm input | 16 Channel, Low Level Effective, Green Terminal Interface |
| Relay Output | 8 Channel, NO/NC Programmable, Green Terminal Interface |
| Tracking Trigger Event | Zoom, Tracking, Recording, Preset, Snapshot, Alarm, etc. |
| Playback and Backup | |
| Playback | 128 Mbps in Raid 5 Mode;
64 Mbps in single HDD Mode |
| Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) |
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom |
| Backup Mode | USB Device/Network/eSATA Device |
| Third-party Support | |
| Third-party Support | Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more |
| Network | |
| Interface | 4 RJ-45 Ports (10/100/1000Mbps) |
| Ethernet Port | 4 Ethernet Ports Joint Working or 4 Independent 1000Mbps Ethernet Ports |
| PoE | N/A |
| Network Function | HTTP, HTTPs, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS, etc.) |
| Optical Fiber Interface | 2 Giga Optical Fiber Interface |
| Max. User Access | 128 users |
| Smart Phone | iPhone, iPad, Android |
| Interoperability | ONVIF 2.4, CGI Conformant |
| Storage | |
| Internal HDD | 16 SATA III Ports, Up to 8 TB capacity for each HDD |
| HDD Mode | Single, Raid 0/1/5/10(Enterprise-level HDDs are recommended), Support Global HDD Hot-spare |
| eSATA | 1 eSATA Port (Please contact technical engineer to confirm the compatible device) |
| SAS | 1 Mini SAS Port, for Storage Expansion |
| Auxiliary Interface | |
| Front Cover | Support Hot-swap |
| USB | 4 USB Ports (2 USB 2.0 , 2 USB 3.0 ) |
| RS232 | 1 Port, for PC Communication and Keyboard |
| RS485 | 1 Port, for PTZ Control |
| Electrical | |
| Power Supply | AC100V ~ 240V, 50 ~ 60 Hz |
| Power Consumption | <51W (Without HDD) |
| Environmental | |
| Operating Conditions | -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa |
| Storage Conditions | -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH |
| Construction | |
| Dimensions | 3U, 485mm x 512.9mm x 133.2mm (19.1" x 20.2" x 5.2") |
| Net Weight | 17.6kg (38.8 lb) (without HDD) |
| Gross Weight | 27kg (59.5 lb) |
| Installation | Rack-mounted |
Product Highlights
-
Super 4K Recording: Supports up to 12MP camera resolution for ultra-clear video.
-
Ultra-High Channel Count: Handles up to 128 IP cameras, ideal for large-scale surveillance.
-
Enterprise Storage Solutions: RAID 0/1/5/10, iSCSI, and Mini SAS for flexible storage expansion.
-
Smart Analytics: Intelligent Video System (IVS) and smart tracking for advanced security.
-
Dual Display Output: Dual HDMI + VGA allows simultaneous multi-screen monitoring.
-
Robust Network & Third-Party Support: ONVIF-compliant and compatible with major camera brands.
-
Efficient Performance: Intel Quad-core processor ensures stable, high-speed recording.
-
Backup & Redundancy: Supports USB, eSATA, and hot-swappable HDD for secure storage.
