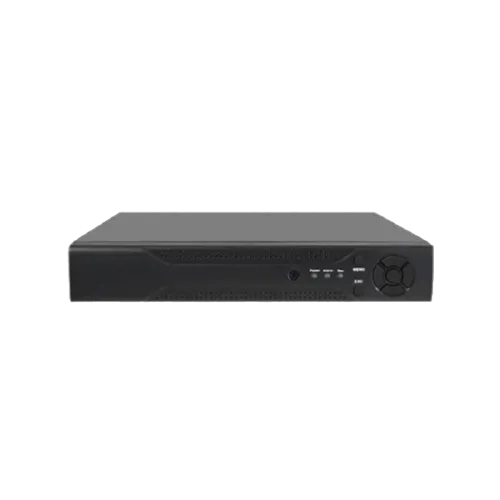

NVR - PENGBO HPB 9008 8CH
SECURITY SOLUTIONS
SenseLK
Rs 15,450
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Category | Specification | Details / Notes |
|---|---|---|
| Product / Model | Model Name | PENGBO HPB 9008 8CH NVR |
| Device Type | Network Video Recorder (NVR) for IP camera systems | |
| Video Input & Capacity | Number of Channels | 8 IP camera inputs |
| Supported Camera Resolution | Up to Full HD (1080p) or higher (model dependent) | |
| Frame Rate | Up to 25/30 fps per channel (for 1080p) | |
| Video Compression | H.264 / H.265 (depending on device firmware) | |
| Dual‑Stream Support | Yes — main stream + sub stream options for network optimization | |
| Recording & Playback | Recording Modes | Manual, Schedule, Motion Detection, Alarm Triggered |
| Loop Recording | Yes — oldest footage is overwritten when storage is full | |
| Playback Channels | Simultaneous multi‑channel playback (1 / 4 / 8 view) | |
| Search Options | Time, Date, Motion/Alarm, Event Filtering | |
| Video Output & Display | HDMI Output | 1 × HDMI (supports up to 1080p or model max) |
| VGA Output | 1 × VGA port for local monitor display | |
| Display Modes | Full screen, quad view, sequence rotation, split modes | |
| Audio | Audio Input / Output | 1 stereo audio‑in, 1 audio-out (line level) (if supported) |
| Storage & Backup | HDD Interface | 1 or 2 × SATA internal HDD bays |
| Maximum HDD Capacity | Up to e.g. 4 TB or 6 TB per drive (verify with your unit) | |
| Backup Options | USB external HDD/flash / network backup (FTP / SMB) | |
| Network / Connectivity | Ethernet Port | 1 × RJ‑45 (10/100/1000 Mbps) |
| Network Protocols | TCP/IP, DHCP, DDNS, HTTP, RTSP, SMTP, ONVIF (if supported), etc. | |
| Remote Access | Browser-based, mobile app (iOS / Android), client software | |
| Alarm & I/O | Alarm Inputs / Outputs | 8 alarm input terminals, 1 alarm relay output (spec-dependent) |
| PTZ & Camera Control | PTZ Support | Yes — support for PTZ control, presets, patrols (if cameras support) |
| Pre-sets / Tours | e.g. 128 presets, 8 patrol routes (if firmware supports) | |
| User Interface / Features | GUI / Menu | On-screen GUI, mouse control, remote GUI |
| USB Ports | 1 or 2 × USB 2.0 (for mouse, data backup, firmware upgrade) | |
| Firmware Update | Via USB or network | |
| Mobile / Remote Features | Supported Platforms | iOS, Android, Windows / macOS (through client or browser) |
| Features | Live view, playback, event alerts, snapshot, PTZ control | |
| Power / Environmental | Power Input | DC 12V (or model variant) |
| Power Consumption | Approx. ≤ 10–20 W (without HDD) | |
| Operating Temperature | 0 °C to +50 °C (typical) | |
| Humidity | 10% to 90% RH, non‑condensing | |
| Build & Design | Chassis | Metal or durable plastic enclosure, compact form |
| Dimensions | Approx. 260 × 240 × 48 mm (estimated) | |
| Weight | ~1.2–1.8 kg (depending on HDDs) | |
| Certifications / Standards | Compliance | CE, FCC, RoHS (verify with manufacturer) |
| Notes & Caveats | HDD Not Included | Hard drives typically sold separately |
| Performance Considerations | Resolution, bitrate, network load affect performance & storage |
