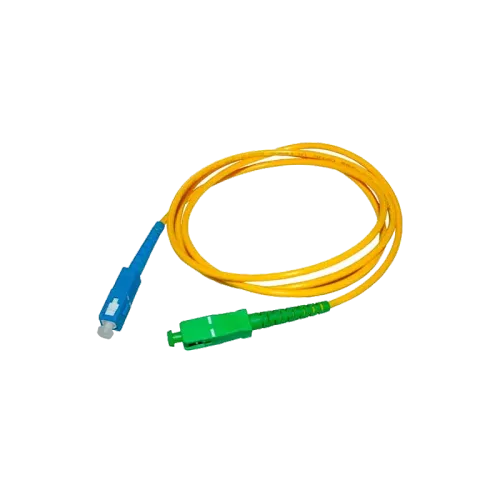

PATCH CODE CABLE 3M FIBER
NETWORKING
SenseLK
Rs 5,550
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Specification | Detail / Value | Notes / Explanations |
|---|---|---|
| Product Name / Model | Fiber Patch Cord 3 m | Internal SKU or model code can be added |
| Cable Length | 3.0 meters | Standard patch‑cord length |
| Connector (End A) | (e.g. SC / LC / ST / FC) | Type and polish (UPC / APC / PC) |
| Connector (End B) | (e.g. SC / LC / ST / FC) | Matching or complementary connector type |
| Connector Polish / End-Face | UPC / APC / PC | Determines reflection / return loss behavior |
| Fiber Mode / Type | Singlemode (OS2) or Multimode (OMx) | Choose based on your network (e.g. 9/125 µm or 50/125 µm) |
| Core / Cladding Diameter | (e.g. 9 / 125 µm for SM, or 50 / 125 µm for MM) | Fiber geometry standard |
| Cable Configuration | Simplex or Duplex | Single strand or paired strands |
| Jacket / Sheath Material | LSZH / PVC / OFNR | Choose based on fire / safety / environmental needs |
| Jacket Color | (e.g. Yellow for SM, Aqua for OM3/OM4) | Helps identify fiber type by appearance |
| Outer Diameter | ~ 2.0 mm (or as specified) | Overall thickness of the cable |
| Insertion Loss | ≤ 0.3 dB (typical) | Loss across the patch cord under nominal conditions |
| Return Loss | ≥ 50 dB (for SM UPC) / ≥ 60 dB (for SM APC) / ≥ 35 dB (for MM) | Reflects how much signal is reflected back |
| Wavelength Support | (e.g. 1310 nm, 1550 nm for SM; 850/1300 nm for MM) | Typical operating wavelengths |
| Attenuation | e.g. ≤ 0.36 dB/km at 1310 nm, ≤ 0.22 dB/km at 1550 nm (for SM) | Cable attenuation per km |
| Minimum Bend Radius | e.g. 10 mm (static) | To avoid damaging the fiber |
| Mating Durability | ≥ 1,000 mating cycles | Number of times connect/disconnect without degradation |
| Operating Temperature | –20 °C to +70 °C | Normal use conditions |
| Storage Temperature | –40 °C to +85 °C | Safe storage ambient |
| Tensile / Pulling Strength | (e.g. 100 N) | Mechanical strength when pulling cable |
| Compliance / Standards | RoHS, IEC, Telcordia GR‑326 etc. | Ensures performance, safety, and reliability |
| Warranty | (e.g. 1 year) | Manufacturer / seller guarantee period |
| Weight | (approx, e.g. 30‑80 g) | Product mass for shipping / handling |
