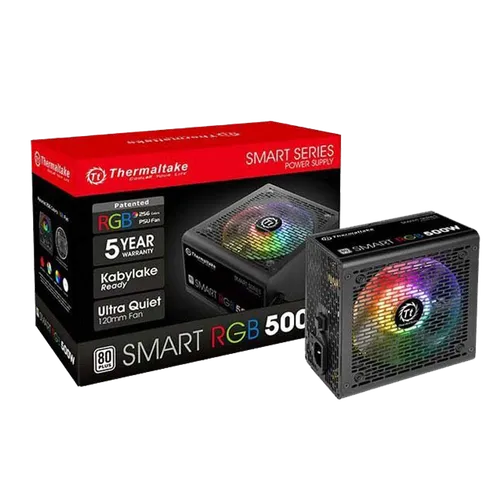

POWER SUPPLY - THERMALTAKE SMART RGB 500W (SPR-0500NHSAW-1)(5Y)

Type

Intel ATX 12V 2.3

Maximum Power

500W

Fans

1 x 120mm RGB LED Intelligent Cooling Fan

Fan LED

RGB

PFC

Active

Main Connector

20+4Pin

+12V Rails

Single

PCI-Express Connector

2 x 6+2-Pin

SATA Power Connector

6

Haswell Support

Yes

Efficiency

80% under typical load

Energy-Efficient

80 PLUS Certified

Over Voltage Protection

Yes

Input Voltage

100 - 240 V

Input Frequency Range

50/60 Hz

Input Current

9A max

Output

+3.3V@20A, +5V@15A, +12V@35A, [email protected], [email protected]

MTBF

100,000 Hours

Approvals

CE / CB / TUV / UL / FCC / EAC

Dimensions

5.50" x 5.90" x 3.40"

Max PSU Length

140 mm

Weight

2.30 lbs.

Features

Connectors

1 x 20+4pin ATX
1 x 4+4pin EPS
2 x 6+2 PCI-E
6 x SATA
3 x Peripheral
1 x Floppy

Features

Compliance with Intel ATX 12V 2.3 standards



80 PLUS Certified – 80% efficiency under typical load

Single +12V rail Design

Supports Intel C6 Status for improved efficiency

Ultra-quiet 120mm RGB LED fan with intelligent temperature control

Hardlined cables for straight forward installatio
