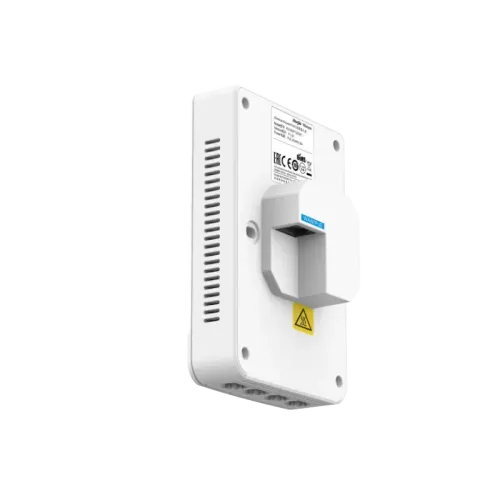

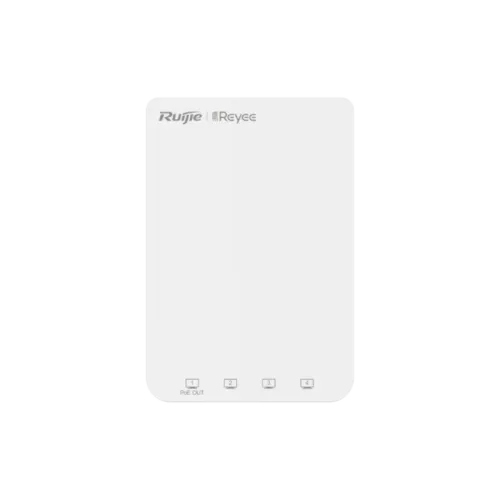

RUIJIE REYEE RG-RAP1200(P) WI-FI5 1267MBPPS WALL MOUNT ACCESS POINT
SenseLK
Rs 46,200
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Category | Details |
|---|---|
| Model | Ruijie Reyee RG-RAP1200(P) – Wall-mounted dual-band access point with PoE passthrough. |
| Wireless Protocols | IEEE 802.11a/b/g/n/ac Wave1 & Wave2 |
| Maximum Wireless Speed | Up to 400 Mbps (2.4 GHz) + 867 Mbps (5 GHz), combined throughput up to 1267 Mbps |
| Wi-Fi Technology | 2×2 MU-MIMO on both 2.4 GHz and 5 GHz bands |
| Antenna Type | Built-in omnidirectional antennas; 2 dBi gain for both frequency bands |
| Ethernet Ports | 1 × Gigabit PoE In (rear), 4 × Gigabit LAN (front); 1 LAN port supports PoE Out |
| Power Supply Options | 802.3af/at PoE input; supports PoE passthrough (802.3af via LAN1 when powered by 802.3at) |
| Maximum Power Consumption | ≤ 8 W (standard); up to 23.4 W when using PoE Out |
| Installation Type | 86 mm standard wall-mount box; flush wall plate design |
| Recommended Clients | Up to 80 recommended; supports maximum of 110 simultaneous users |
| Security Features | WPA/WPA2, PSK authentication, VLAN tagging, client isolation, access control, MAC filtering |
| SSIDs Supported | Up to 8 SSIDs (4 per band) |
| Roaming | Supports Layer 2 and Layer 3 fast roaming |
| Management Options | Web UI (local), Ruijie Cloud App & Platform (remote), Self-Organizing Network (SON), and Wi-Fi Intelligent Optimization (WIO) |
| Operating Temperature | 0 °C to 40 °C |
| Storage Temperature | -40 °C to 70 °C |
| Humidity | 0%–100% RH, non-condensing (operating & storage) |
| Dimensions (L×W×H) | 126 mm × 86 mm × 46.3 mm |
| Weight | Approximately 0.24 kg |
| Mean Time Between Failures (MTBF) | Over 250,000 hours |
| Certifications | CE, RoHS, SRRC, EN55032/35, EN61000, EN50155/21, IEC62368-1 |
| Software Modes | AP mode, Routing mode |
| Packaging Contents | RG-RAP1200(P) unit, mounting screws (x2), Quick Start Guide, warranty card |
| Warranty | 3 years standard manufacturer warranty |
Product Highlights
-
Dual-Band Performance for Every Scenario
Enjoy fast, reliable coverage with speeds up to 1.267 Gbps, ideal for hotels, dormitories, apartments, and small offices. -
Intelligent Wall-Mount Design
Built to fit standard 86 mm electrical boxes, making it blend into any room while reducing clutter and improving cable management. -
Built-In Gigabit Ports & PoE Passthrough
With four Gigabit LAN ports, one supporting PoE Out, connect devices like IP phones or IP cameras without needing additional power adapters. -
Wi-Fi Optimized for High-Density Environments
Equipped with MU-MIMO technology and multi-SSID support to handle up to 110 concurrent users with seamless roaming across zones. -
Quick Setup with Self-Organizing Network (SON)
Get started in minutes—one-click network deployment and cloud-based provisioning via the Ruijie Cloud App and platform. -
Business-Class Security & Control
WPA/WPA2 encryption, client isolation, VLAN tagging, blacklist/whitelist management, and more—everything needed for a secure wireless environment. -
Remote Monitoring & Management
Whether you're onsite or remote, stay in full control with real-time monitoring, diagnostics, and intelligent optimization tools. -
Built for Stability & Compliance
Certified to international standards with durable construction and high MTBF for long-lasting performance.
