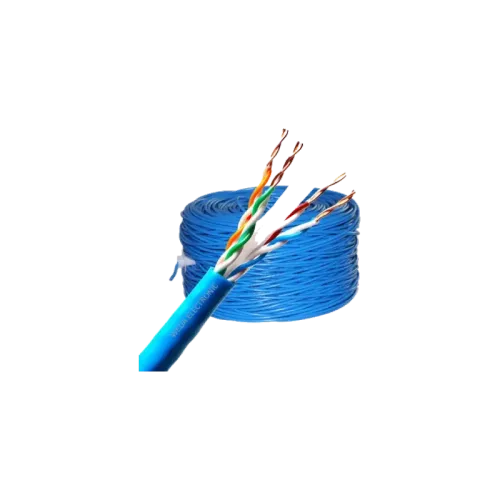

UTP CABLE - LANSAN CAT6 305M(L096 BL)
NETWORKING
SenseLK
Rs 43,750
In Stock
Available hours
Closed now
- Monday09:00 - 19:00
- Tuesday09:00 - 19:00
- Wednesday09:00 - 19:00
- Thursday09:00 - 19:00
- Friday09:00 - 19:00
- SaturdayToday09:00 - 19:00
- Sunday09:00 - 17:00
View more on,
Description
| Specification | Detail / Value | Notes / Explanation |
|---|---|---|
| Product Name / Model | LANSAN Cat6 UTP Cable – 305 m (L096 BL) | "L096 BL" may refer to batch or color code (Blue) |
| Cable Length | 305 meters (1000 feet) | Supplied in pull box or spool format |
| Category / Type | Cat6 UTP (Unshielded Twisted Pair) | Ideal for high-speed LAN networks |
| Conductor Material | Copper-Clad Aluminum (CCA) or Bare Copper (BC) | Varies by version; check before purchase |
| Conductor Diameter | ~0.50 mm (approx.) | Standard size for Cat6 performance |
| Number of Conductors | 8 (4 twisted pairs) | Standard for Ethernet cabling |
| Cable Structure | Solid, Unshielded | For structured in-wall or conduit installations |
| Jacket Material | PVC or LSZH | PVC for flexibility, LSZH for fire safety compliance |
| Outer Jacket Color | Blue | "BL" likely refers to color code |
| Outer Diameter | ~6.2 mm | Typical size for Cat6 bulk cable |
| Bandwidth | Up to 250 MHz | Ensures high signal clarity |
| Data Rate Support | 10/100/1000 Mbps (1 Gbps) | Supports Gigabit Ethernet over full distance |
| Impedance | 100 ± 15 Ohms | Industry standard impedance |
| Capacitance | ~5.6 nF/100m | Low capacitance reduces signal distortion |
| DC Resistance | ≤ 9.5 Ohms/100m (per conductor) | Maintains performance over long runs |
| Propagation Delay | ≤ 536 ns/100m | Low delay ensures minimal signal lag |
| Return Loss | ≥ 16 dB @ 100 MHz | Indicates high signal reflection resistance |
| Temperature Range | –20°C to +60°C (Operating) | Suitable for standard indoor environments |
| Storage Temperature | –40°C to +70°C | Durable under storage conditions |
| Bend Radius | ≥ 4 × outer diameter | Minimum bend radius for safety during installation |
| Pull Strength | ≥ 100 N | Withstands installation without breaking |
| Certifications | CE, RoHS, ISO/IEC 11801, TIA/EIA 568 | Fully standards-compliant |
| Applications | Ethernet, CCTV, VoIP, PoE, LAN installations | Versatile use for structured cabling |
| Packaging | Pull box or wooden reel | Easy to deploy for installers |
| Warranty | 1 Year (typical) | Based on supplier/manufacturer offer |
