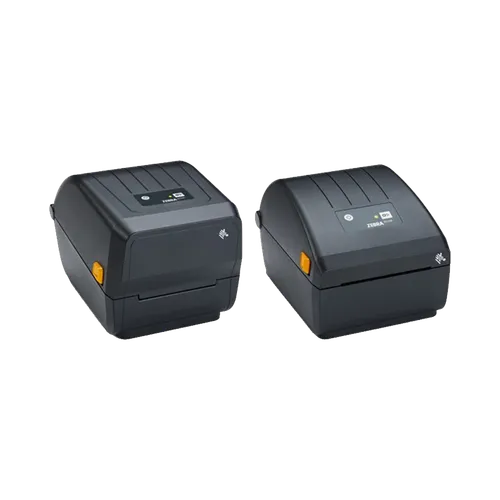

ZEBRA ZD230I BARCODE PRINTER(1y)

• Thermal Transfer or Direct Thermal print method
• ZPL and EPL programming languages
• Single LED status indicator
• Single button for feed/pause
• USB connectivity
• OpenACCESS™ for easy media loading
• Dual-wall frame construction
• ENERGY STAR qualified
• ZebraDesigner Essentials - easy label design tool free at
www.zebra.com/zebradesigner

Dimension

Thermal Transfer:
10.5 in. L x 7.75 in. W x 7.5 in. H
267 mm L x 197 mm W x 191 mm H
Direct Thermal
8.6 in. L x 6.9 in. W x 5.9 in. H
220 mm L x 176 mm W x 151 mm H

Weight

2.5 lbs/1.1 kg

Resolution

203 dpi/8 dots per mm

Memory

128 MB Flash; 128 MB SDRAM

Maximum Print Width

4.09 in./104 mm for 203 dpi

Programmable Print Speed

6 in./152 mm per second or 4 in./102 mm per second

Media Sensors

Movable black mark sensor, limited range from center to left side
Fixed off-center gap sensor

Firmware

ZPL II; EPL 2; XML

Maximum Label Length

39.0 in./991 mm

Media Width

1.00 in./25.4 mm to 4.4 in./112 mm

Media Roll Size

5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm)

Thickness

0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only)

Media Types

Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands

Ribbon Outside Diameter

2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m)

Maximum Ribbon Length

984 ft. (300 m)

Ribbon Ratio

• 1:4 media to ribbon (300 m)
• 1:1 media to ribbon (74 m)

Ribbon Width

1.33 in./33.8 mm ~ 4.3 in./109.2 mm

Ribbon Core I.D.

• 300 Meter ribbon 1 in./25.4 mm
• 74 Meter ribbon 0.5 in./12.7 mm

Operating Temp.

40° to 105° F/4.4° to 41° C

Storage Temp.

-40° to 140° F/-40° to 60° C

Operating Humidity

10% to 90% non-condensing

Storage Humidity

5% to 95% non-condensing

Electrical

Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified

Media Handling

Factory installed peeler or cutter

Communications

• Factory-installed USB and Ethernet
• Factory-installed USB and Bluetooth 4.1
• Factory-installed USB 802.11ac Wi-Fi and Bluetooth 4.1

Real Time Clock

None

Keyboard Display Unit

No serial port, thus no KDU/ZKDU

Bar Code Ratios

2:1 and 3:1

1D Bar Codes

Code 11, Code 39, Code 93, Code 128, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2-or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar and Planet Code

2D Bar Codes

Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, MicroPDF, Aztec

Fonts and Graphics

16 resident expandable ZPL II bitmap fonts
Two resident scalable ZPL fonts
Five resident expandable EPL2 fonts
Native open-type font support
Unicode compliant for multi-language, on demand thermal printing
50 MB user available non-volatile memory, 8 MB user available SDRAM

Keep your Zebra printer up and running with genuine Zebra printer supplies, available directly from Zebra.

IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus
CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM

Zebra OneCare SV

Link-OS Basic printer operating system

This printer is supported by a core set of Print DNA Basic applications and capabilities.

Zebra Setup Utilities

Enhances out-of-the-box experience by enabling quick and easy printer configuration

ZebraDesigner
Essentials

Makes designing and printing industry-standard and compliant labels simple, including fixed or variable data

Emulations

On-printer apps allow Zebra printers to use legacy languages normally associated with other printer brands
