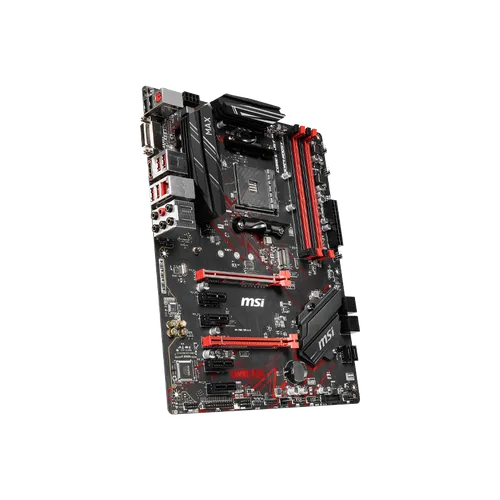

MSI B450 GAMING PLUS MAX MOTHERBOARD (3y)

Name: MSI B450 GAMING PLUS MAX MOTHERBOARD (3y)
Price: 40100 LKR
Availability: InStock

GAMING

SenseLK

Rs 40,100

In Stock

0706100100

+94706100100

https://www.sense.lk...

Available hours

Closed now

View more on,

Description

Supported CPU
CPU Socket Type	AM4
CPU Type	Supports 1st / 2nd / 3rd Gen AMD Ryzen Processors Supports 2nd Gen AMD Ryzen with Radeon Graphics Processors Supports Ryzen with Radeon Vega Graphics Processors Supports Athlon with Radeon Vega Graphics Desktop Processors

Chipsets
Chipset	AMD B450

Memory
Number of Memory Slots	4×288pin (DDR4)
Memory Standard	DDR4 4133 / 4000 / 3866 / 3733 / 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 (For AMD Ryzen Gen3 (R5/R7/R9), by A-XMP OC MODE) DDR4 3466 / 3200 / 3066 / 3000 / 2933 / 2800 / 2667 (For AMD Other CPU, by A-XMP OC MODE) DDR4 2667 / 2400 / 2133 / 1866 (by JEDEC)
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express 3.0 x16* * Actual support may vary by CPU.
PCI Express 2.0 x16	1 x PCI Express 2.0 x16* * PCI_E4, supports x4 mode. * PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot.
PCI Express x1	4 x PCIe 2.0 x1

Storage Devices
SATA 6Gb/s	6 x SATA 6Gb/s* * SATA5 and SATA6 ports will be unavailable when installing a M.2 device in M.2 slot.
M.2	1 x M.2 slot (Key M): - Supports PCIe 3.0 x4 (1st, 2nd and 3rd Gen AMD Ryzen, Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics) or PCIe 3.0 x2 (Athlon with Radeon Vega Graphics) and SATA 6Gb/s 2242/2260/2280/22110 storage devices
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Onboard Audio
Audio Chipset	Realtek ALC892/ALC897
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek 8111H
Max LAN Speed	10/100/1000Mbps

Rear Panel Ports
Back I/O Ports	1 x DVI-D 1 x HDMI 1 x LAN (RJ45) 1 x PS/2 Keyboard/Mouse Combo 2 x USB 2.0/1.1 2 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 6 x Audio Jacks Flash BIOS Button

Internal I/O Connectors
Onboard USB	2 x USB 2.0 connectors (support additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connectors (support additional 2 USB 3.2 Gen1 ports)
Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin water-pump-fan connector 4 x 4-pin system fan connectors 1 x TPM module connector 1 x Front panel audio connector 2 x System panel connectors 1 x Serial port connector 1 x Parallel port connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper 2 x 5050 RGB LED strip 12V connectors
